The limited-edition Tim Commerford Artist Series StingRay Bass in Quentin Blue, developed in collaboration with legendary bassist Tim Commerford of Rage Against the Machine, Audioslave, and 7D7D, embodies his deep connection to Ernie Ball Music Man. With only 50 units available, each featuring a numbered custom neck plate, this bass combines an ash body, roasted maple neck, and ebony fretboard for rich, balanced tone. It features passive electronics with a neodymium humbucker, a volume control that includes a passive boost, a 3-way rotary pickup selector, and a tone knob for a wide range of tonal options. The string-through-body bridge with a mute kit enhances sustain and control, while black hardware and a custom, height-adjustable “finger ramp” thumb rest - inspired by Commerford’s playing style - provide added comfort and flexibility.
Quentin Blue
The Tim Commerford Passive bass comes with a 3 position parallel / single-coil / series pickup rotary switch and push volume control with passive gain boost.

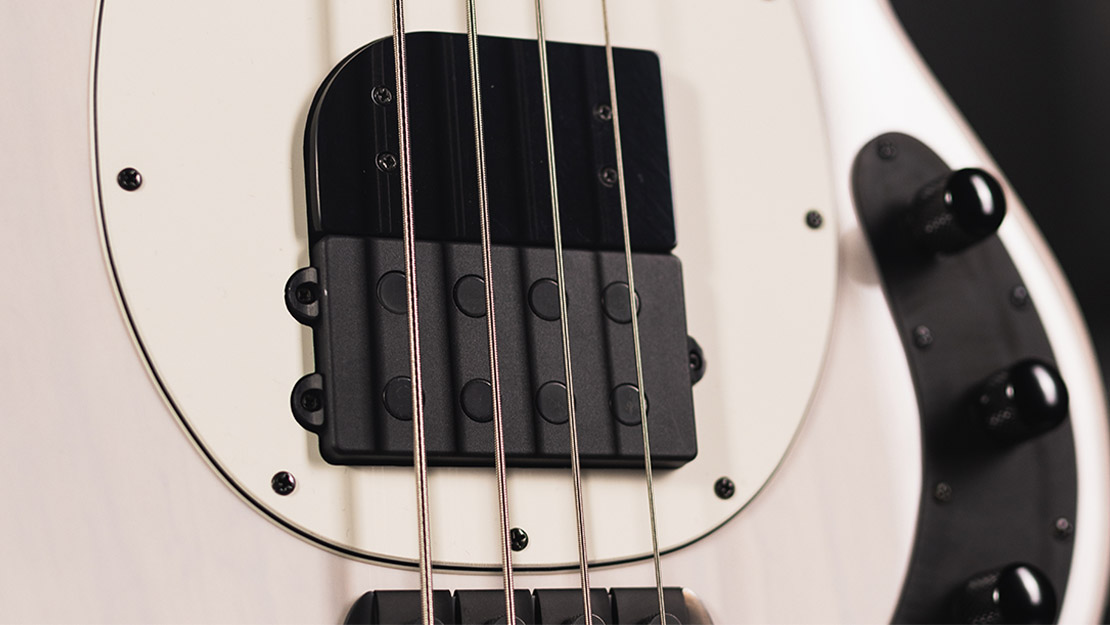

The StingRay humbucking pickup features powerful neodymium magnets, bringing you more output and a wider range of sounds. A beveled pickup cover thumb rest and adjustable finger ramp allow a more comfortable fingerstyle hand position playing above or adjacent to the pickup.

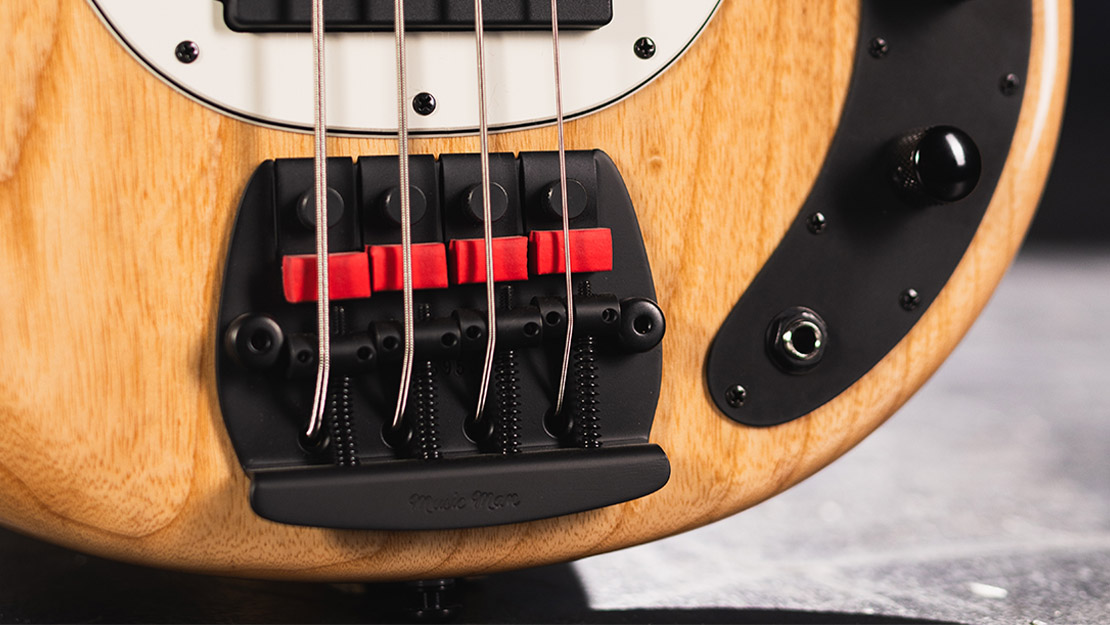

The classic string thru bridge is fitted with individual mute pads allowing you to customize the degree of string dampening to suit your tastes.

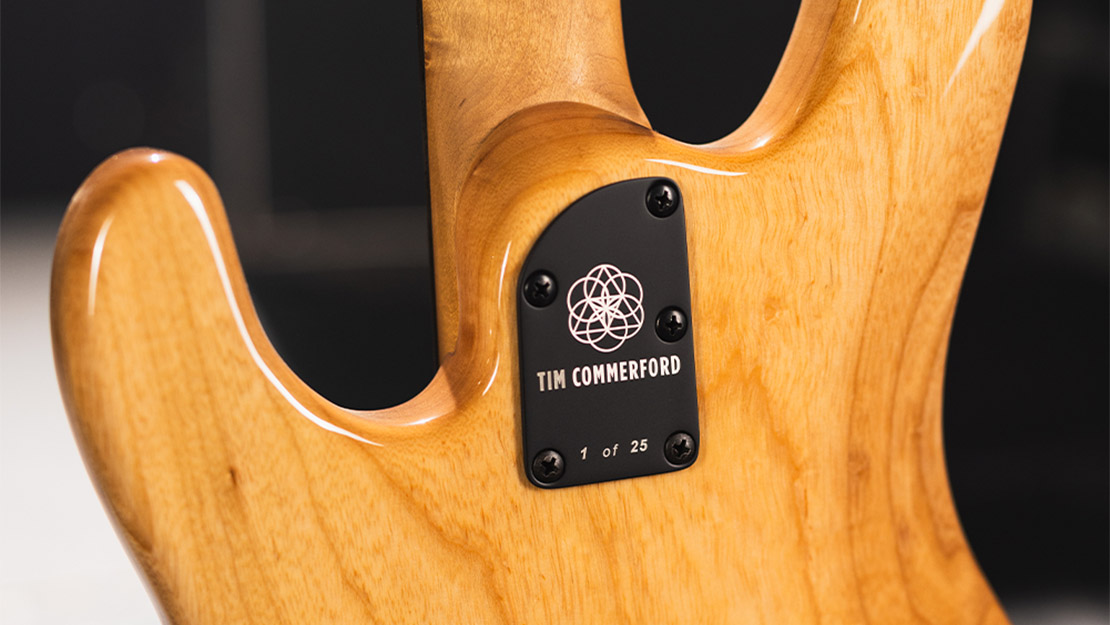

All Tim Commerford edition models include popular vintage appointments with updated modern refinements. Oil and wax maple and roasted maple necks are standard, along with a compensated nut and sculpted 5-bolt neck join for full access to all 22 stainless steel frets.
| 配置 | Tim Commerford Passive Full-Scale |
|---|---|
| 款式 | Tim Commerford Passive Full-Scale |
| 尺寸 | 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long) |
| 琴身木材 | Ash |
| 琴身外观 | Matte polyester |
| 琴身颜色 | Quentin Blue |
| 琴桥 | Music Man® black chrome plated, strings-thru-the-body & hardened steel bridge plate with vintage black chrome plated steel saddles and adjustable mute pads |
| 护板 | Parchment |
| 有效弦长 | 34" (86.4 cm) |
| 琴颈弧度 | 11" (27.9 cm) |
| 琴头尺寸 | Only 8-3/4" (22.2 cm) long |
| 品丝 | 22 - High profile, wide - stainless steel |
| 琴颈宽度 | 1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at the last fret |
| 琴颈木材 | Select roasted maple neck |
| 指板 | Ebony |
| 品位标记 | 5/16" Dot Inlay |
| 琴颈外观 | Gunstock oil and hand-rubbed special wax blend |
| 琴颈颜色 | Matching headstock |
| 弦钮 | Custom Music Man, lightweight with tapered string posts and ergonomic clover design |
| 琴颈调节杆 | Adjustable - no component or string removal |
| 琴颈连接补强板 | 5 bolt, sculpted neck joint |
| 电路屏蔽 | Black plated aluminum control cover |
| 控制钮 | Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap |
| 拨档开关 | 3-way rotary pickup selector |
| 拾音器 | Single Music Man humbucking pickup- neodymium magnets |
| 琴弦 | 50w-70w-85w-105w (Regular Slinky Bass #2832) |
id => 121
iid => 121
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2024-11-18 13:24:37
updated_at => 2024-11-18 13:24:37
| 配置 | Tim Commerford Passive Full-Scale | |
|---|---|---|
| Model | Tim Commerford Passive Full-Scale | |
| Order | 0 | |
| Size | 13-1/2" wide, 1-5/8" thick, 44-7/8" long (34.3 cm wide, 4.1 cm thick, 114.0 cm long) | |
| Body Wood | Ash | |
| Body Finish | Matte polyester | |
| Body Colors | Quentin Blue | |
| Body Bindings | ||
| Bridge | Music Man® black chrome plated, strings-thru-the-body & hardened steel bridge plate with vintage black chrome plated steel saddles and adjustable mute pads | |
| Pickguard | Parchment | |
| Scale Length | 34" (86.4 cm) | |
| Neck Radius | 11" (27.9 cm) | |
| Headstock Size | Only 8-3/4" (22.2 cm) long | |
| Frets | 22 - High profile, wide - stainless steel | |
| Neck Width | 1-11/16" (42.9mm) at the nut, 2-1/2" (63.5 mm) at the last fret | |
| Neck Wood | Select roasted maple neck | |
| Fingerboard | Ebony | |
| Fret Markers | 5/16" Dot Inlay | |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | Matching headstock | |
| Neck Binding | ||
| Tuning Machines | Custom Music Man, lightweight with tapered string posts and ergonomic clover design | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5 bolt, sculpted neck joint | |
| Electronic Shielding | Black plated aluminum control cover | |
| Controls | Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap | |
| Switching | 3-way rotary pickup selector | |
| Pickups | Single Music Man humbucking pickup- neodymium magnets | |
| Left Handed | ||
| Strings | 50w-70w-85w-105w (Regular Slinky Bass #2832) |
