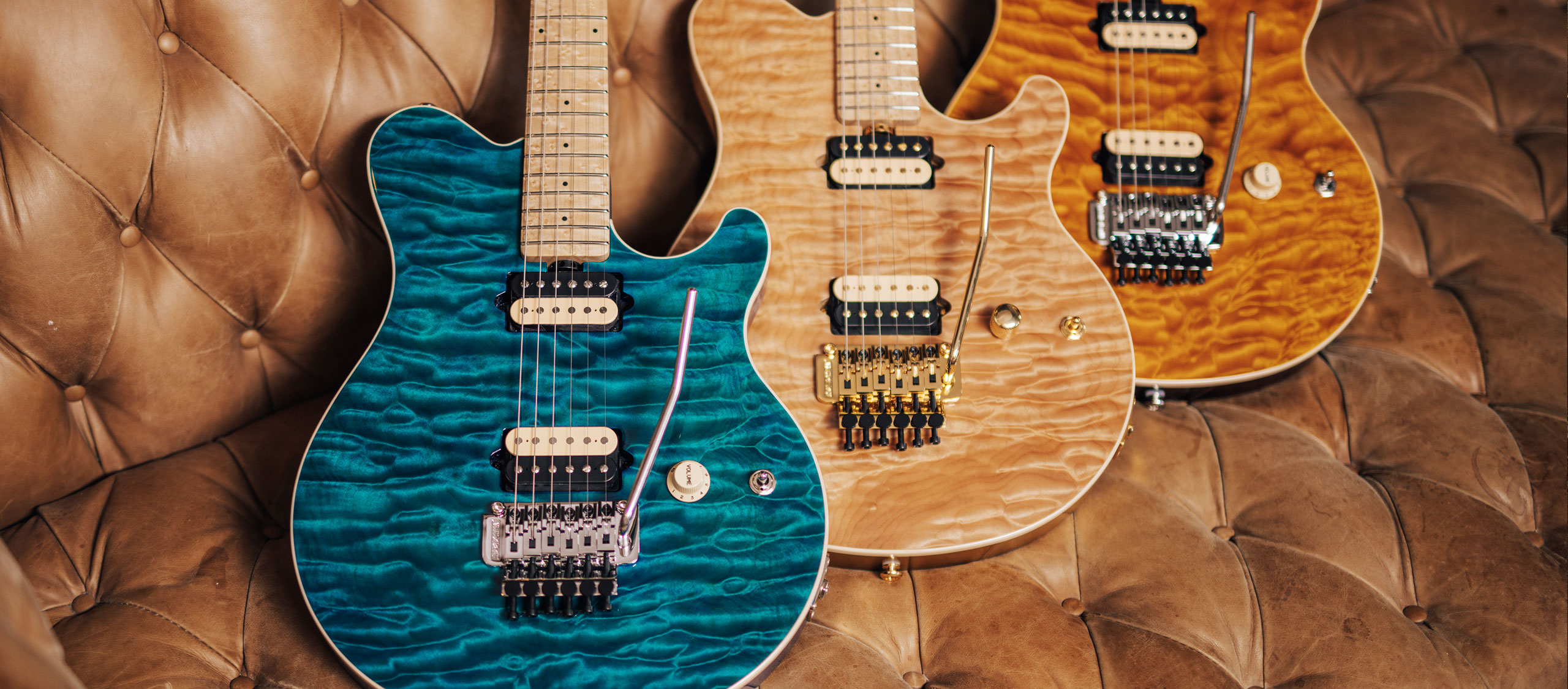

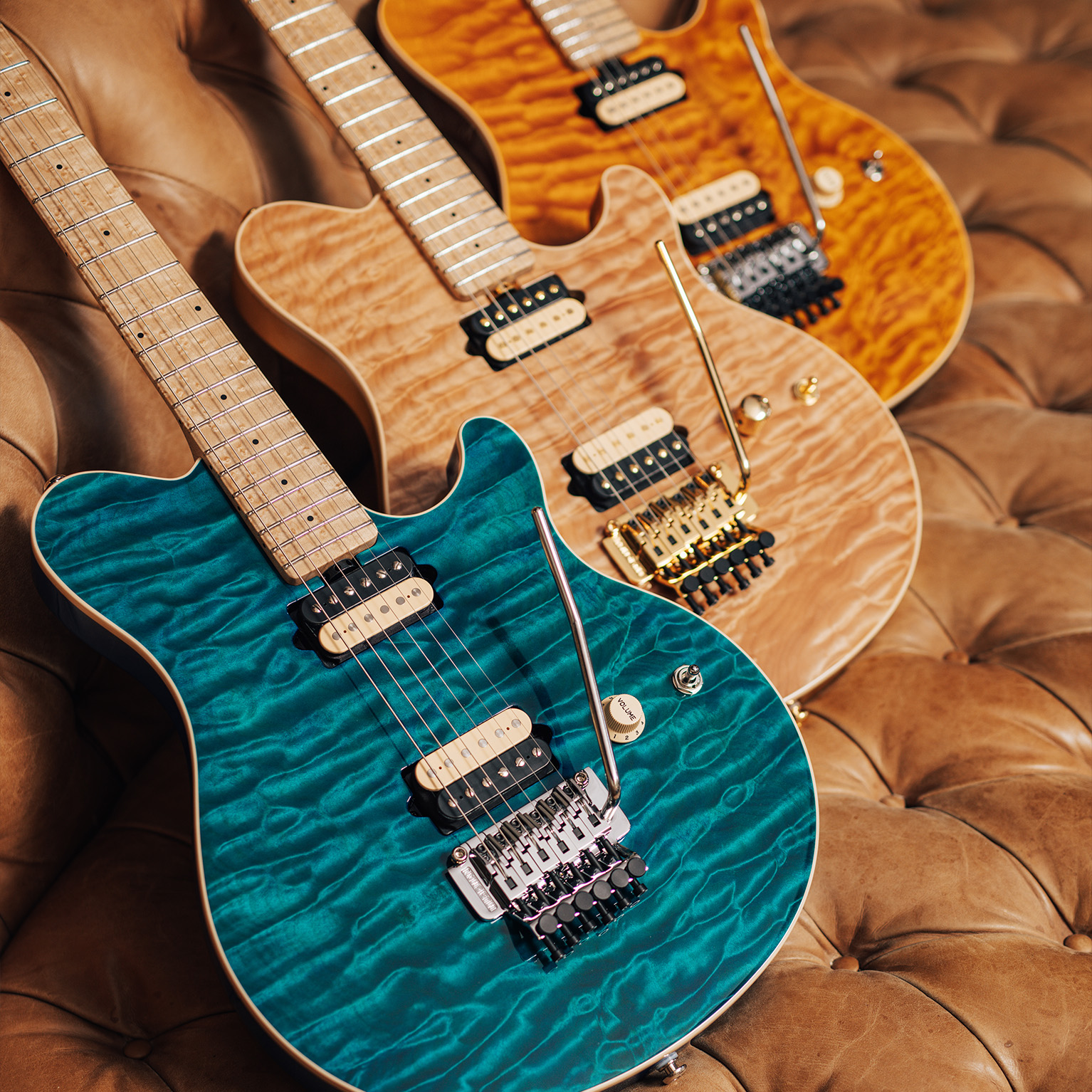

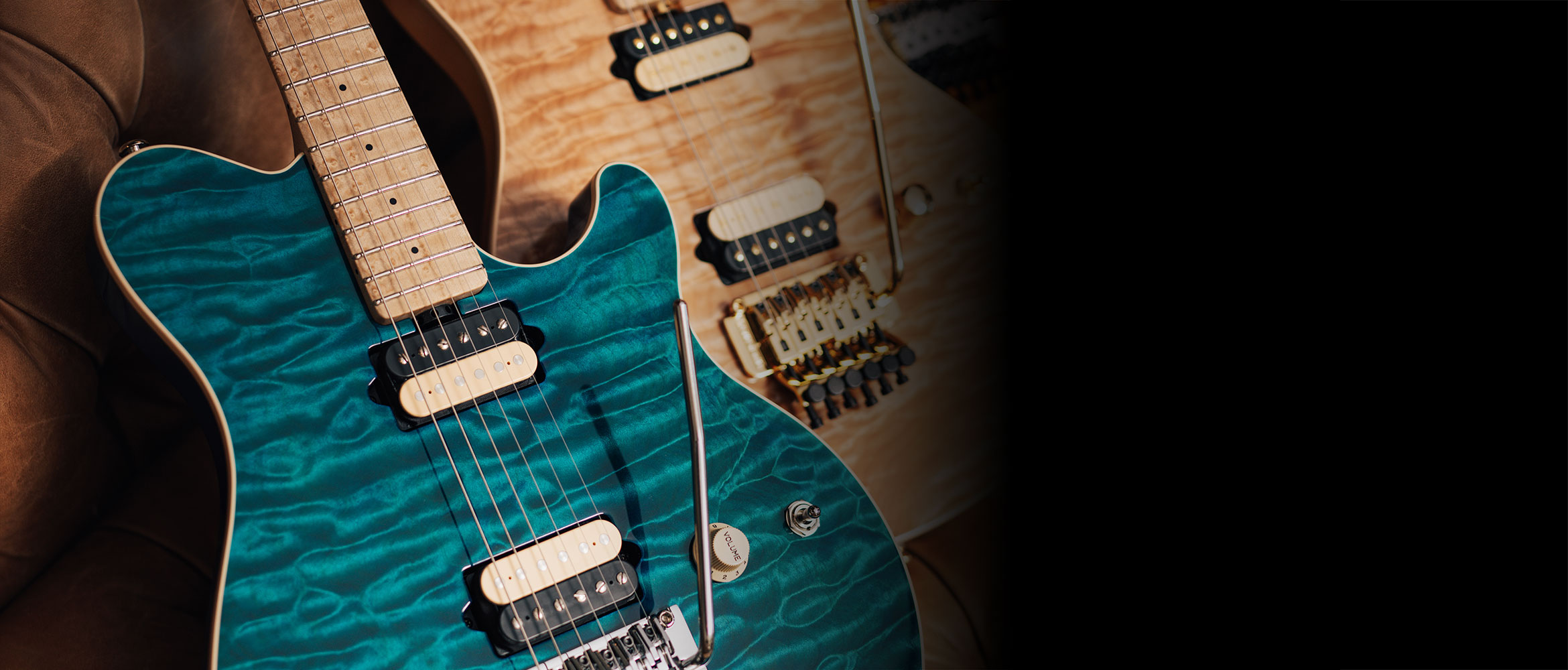

This limited edition run of 50 Ernie Ball Music Man Axis guitars combines the iconic specs players love—custom-wound DiMarzio pickups, basswood body, and the signature asymmetrical neck shape—with premium tonewoods and exclusive finishes. Each guitar features a hand-selected, one-piece quilt maple top and birdseye maple neck, with 20 in translucent gold and 15 in translucent blue, both featuring matching painted headstocks and chrome hardware, and 15 in natural with Gold Pearl backs paired with gold hardware. Each guitar ships in a custom G&G case, making this a truly special Axis release.
Translucent Gold
Translucent Blue
Natural

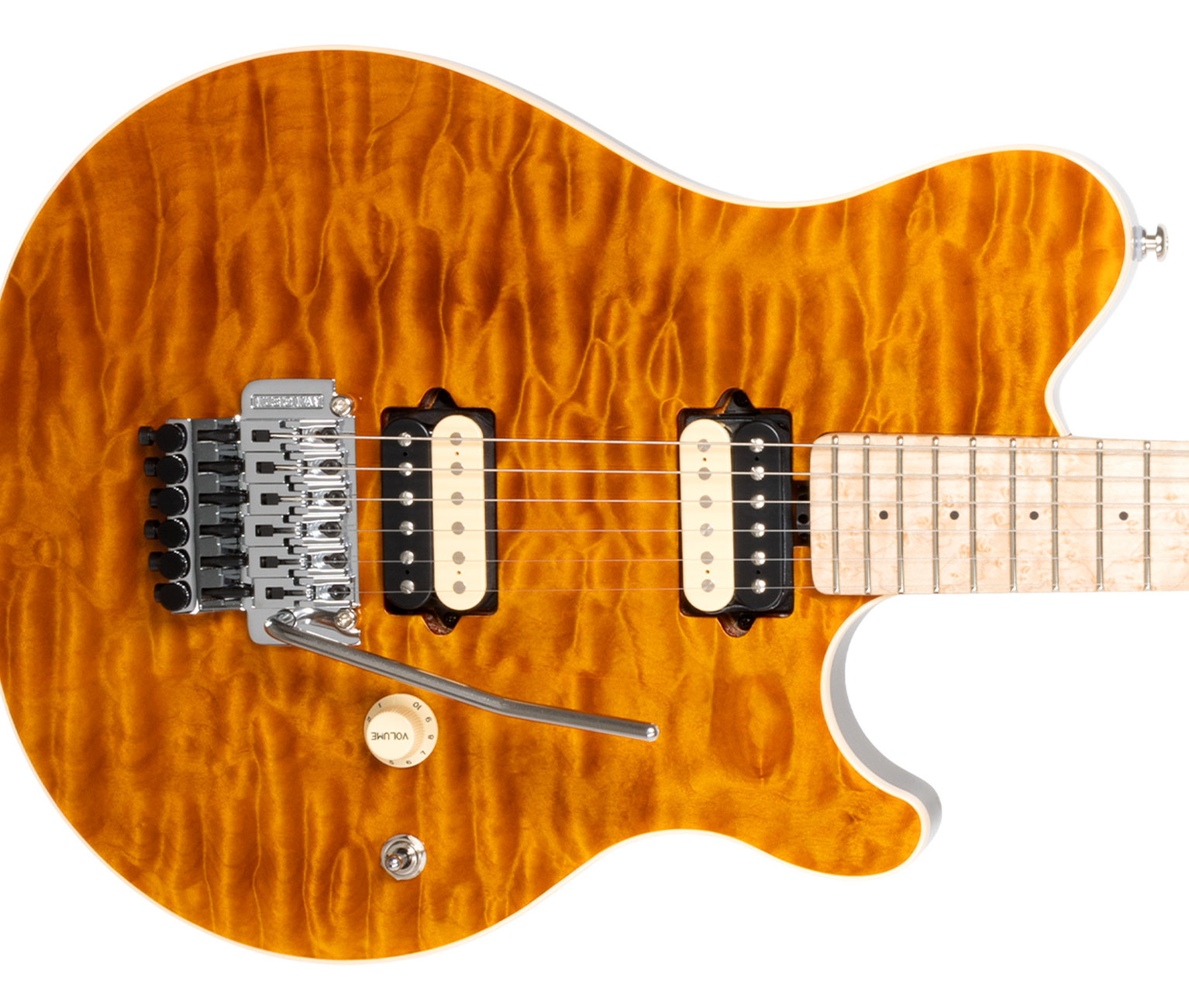

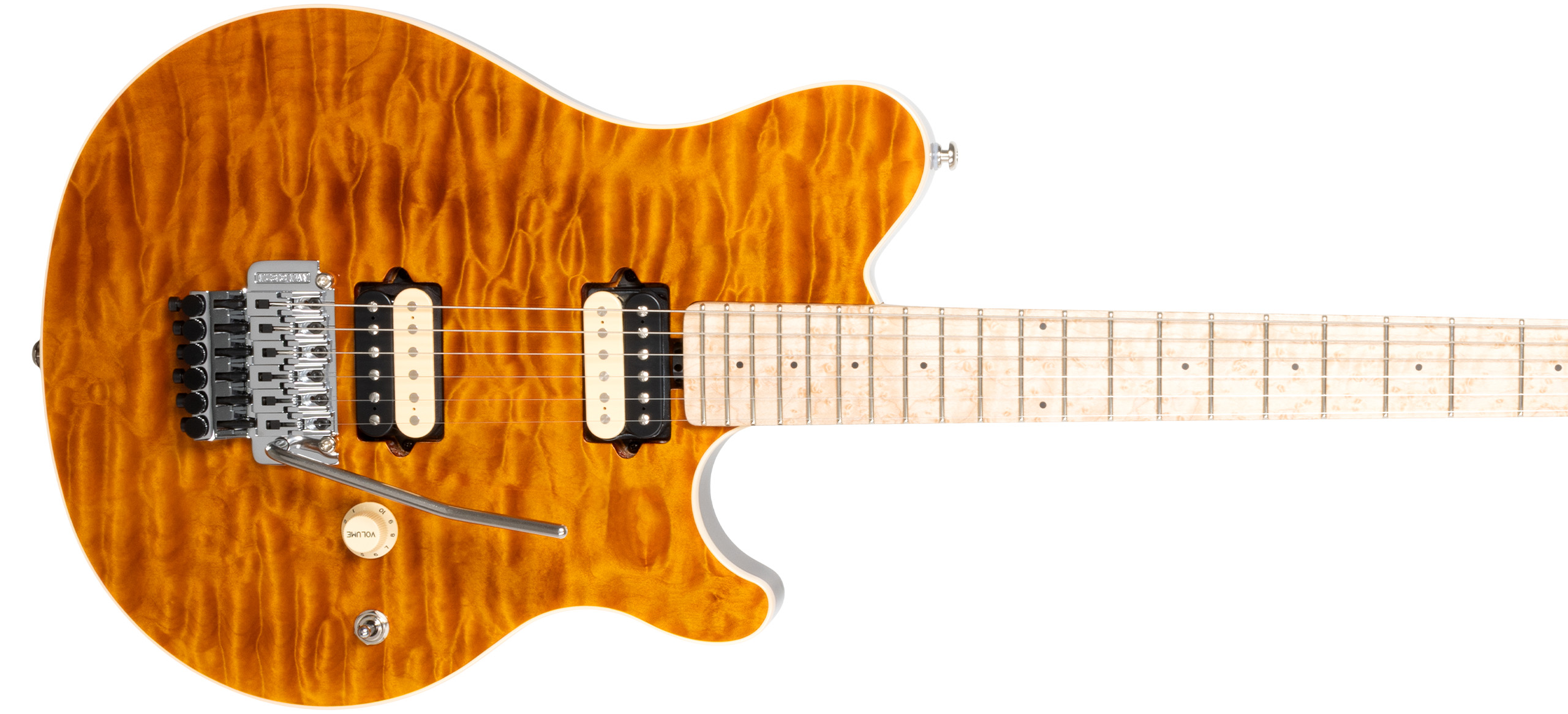

The Axis guitar features a perfectly balanced, single-cutaway body design that allows unparalleled access to all 22 stainless frets. The premium figured maple neck with an asymmetric custom neck carve provides an ultra-comfortable playing experience.

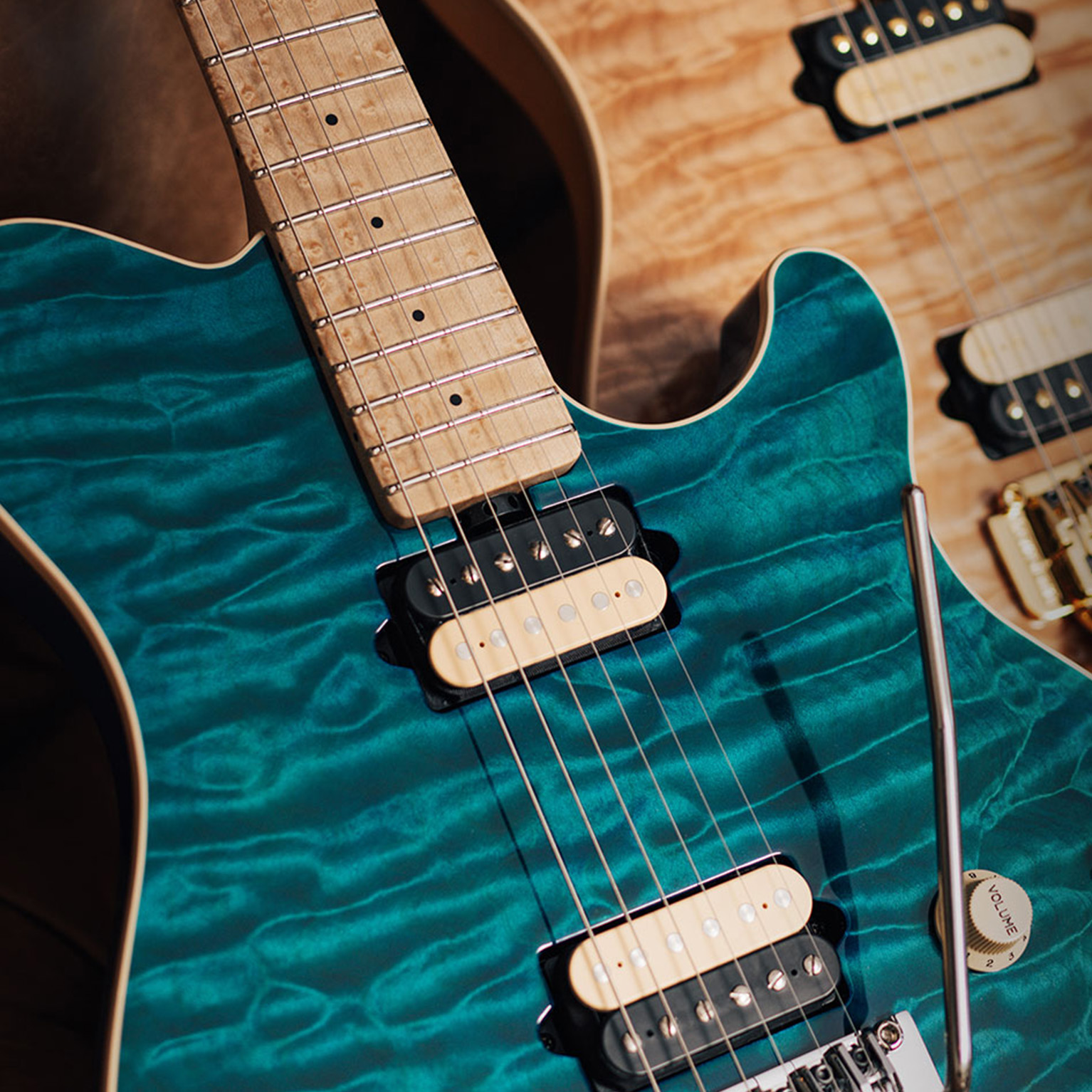

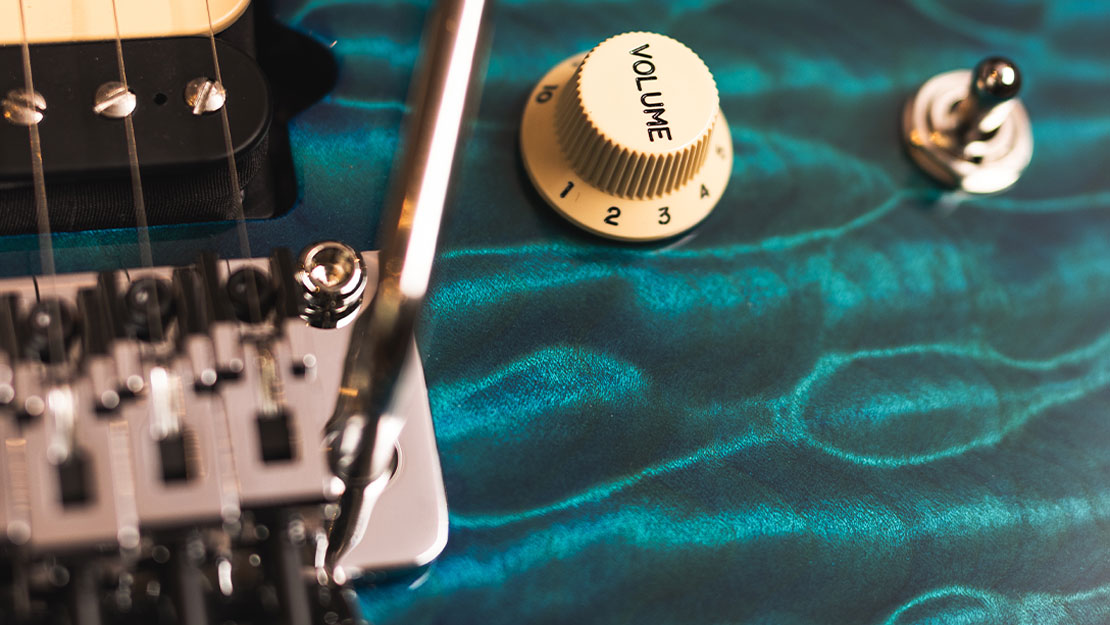

Rare and beautiful quilted maple tops with unaltered, continuous natural grain pattern.

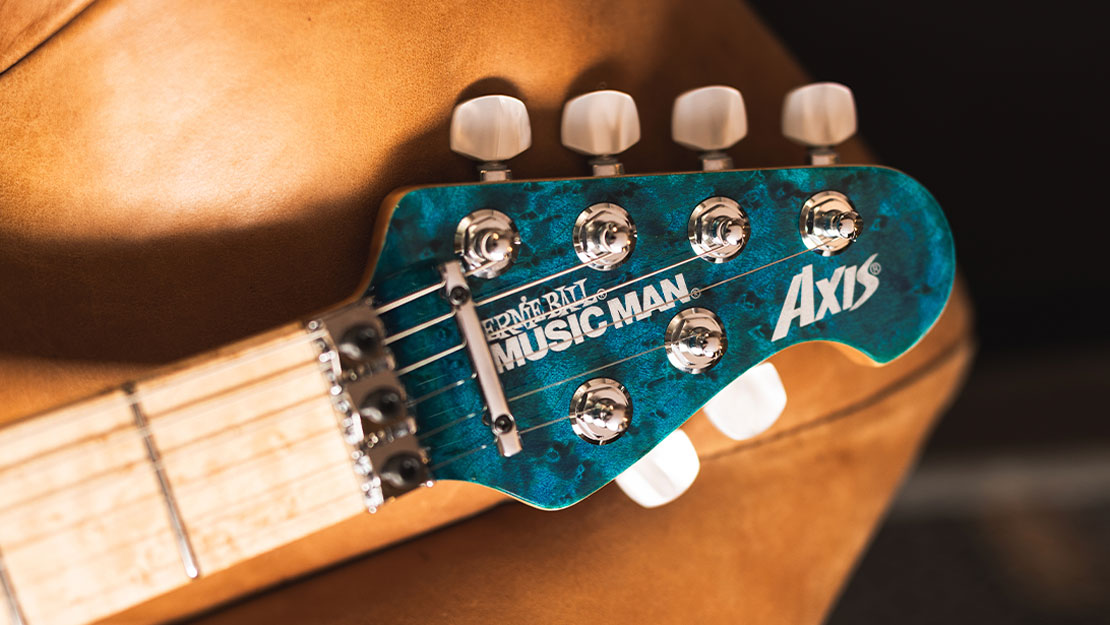

Rock solid figured maple neck with 22 stainless steel frets, matching painted headstock, and Schaller non-locking tuners.

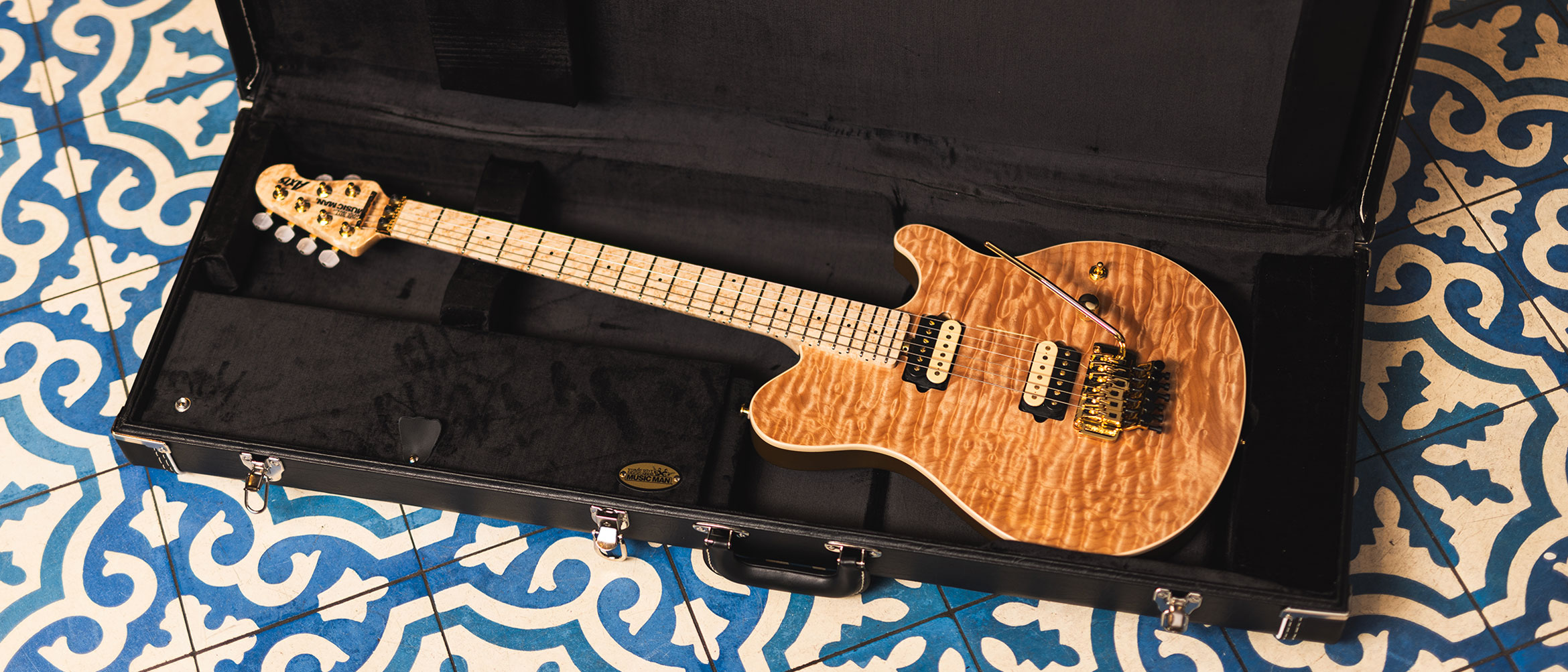

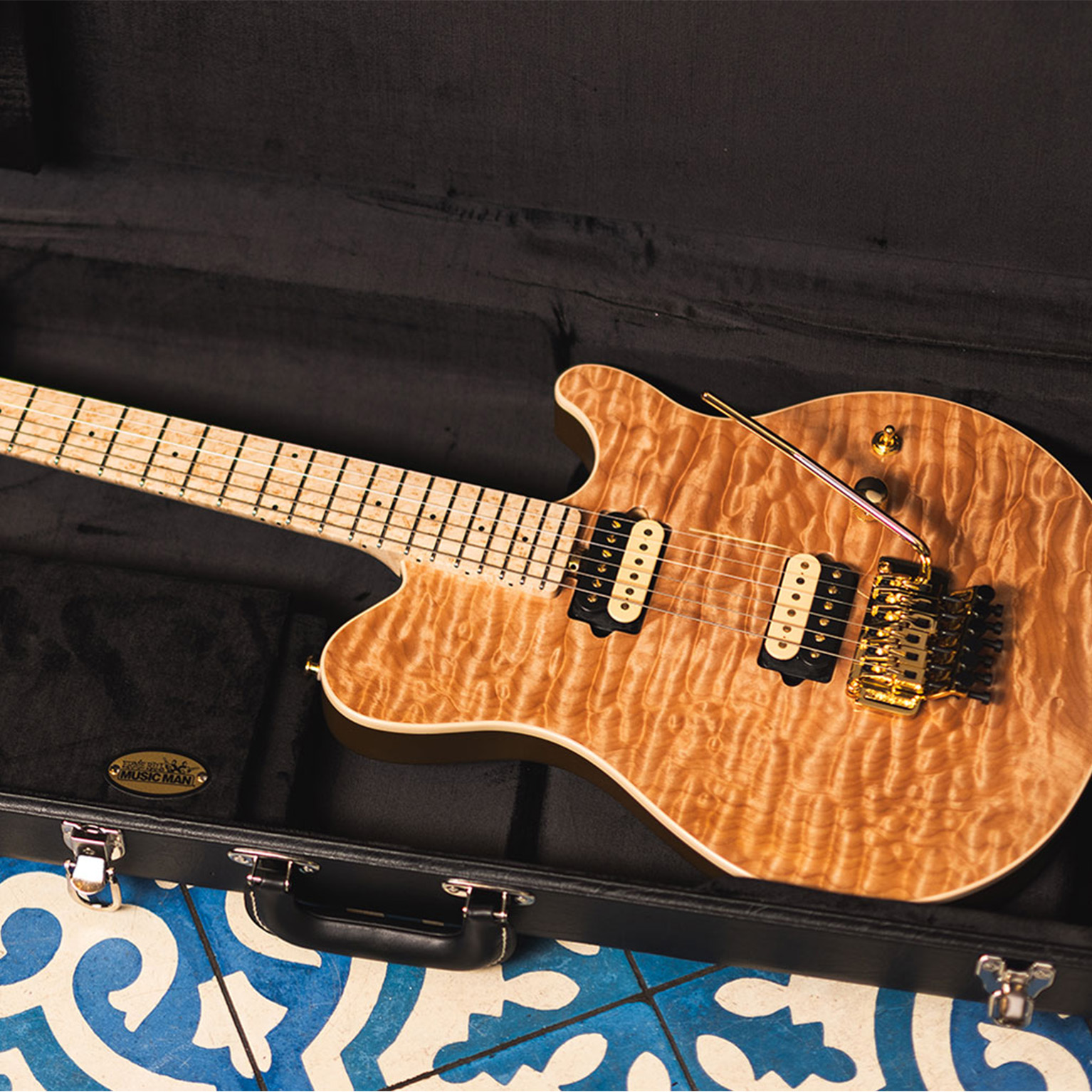

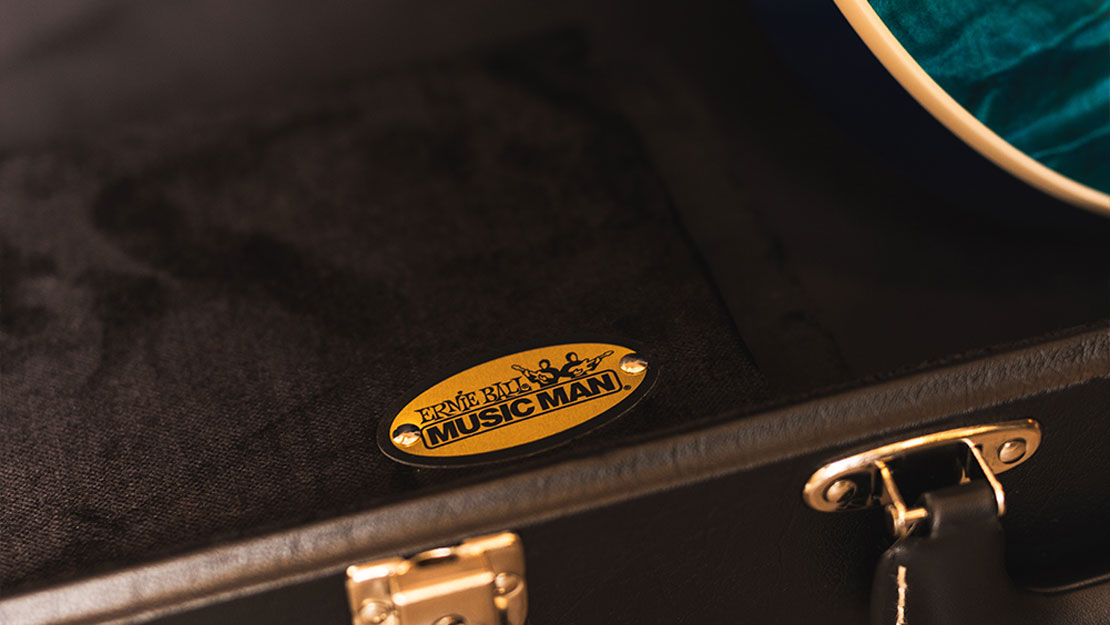

Quality G&G cases are handcrafted in Los Angeles, California, using the same time-honored techniques they've perfected over the past 70 years.

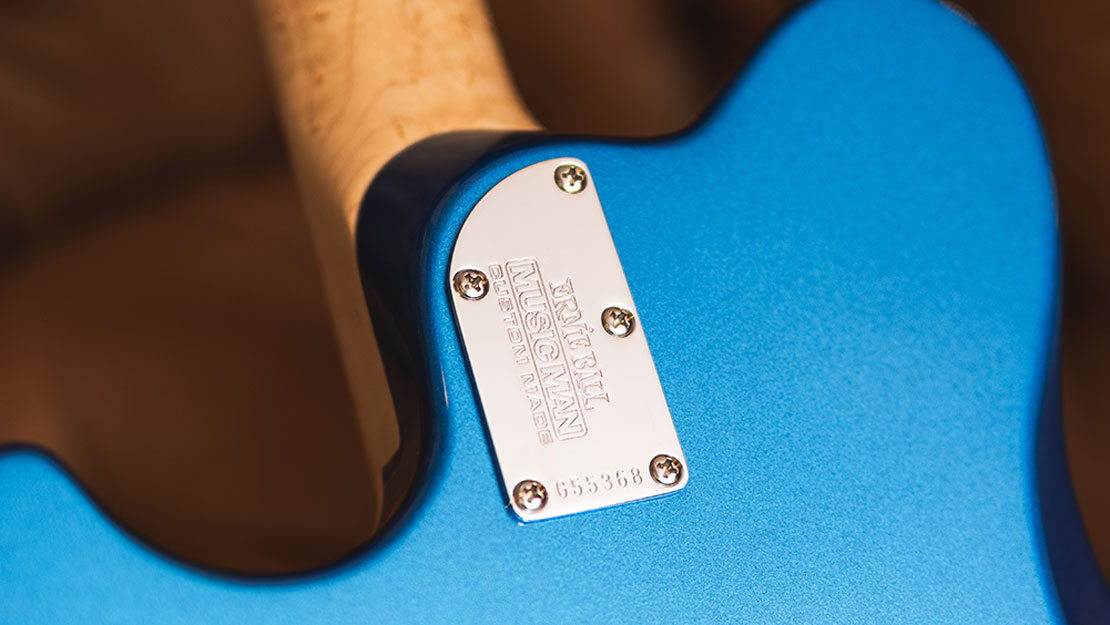

The body back is custom finished and color coordinated to complement the translucent quilted maple top.
| 配置 | Axis Premium One Piece Top |
|---|---|
| 款式 | Axis Premium One Piece Top |
| 尺寸 | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) |
| 琴身木材 | Basswood with Premium One Piece Quilt Maple Top |
| 琴身外观 | High gloss polyester |
| 琴身包边 | Binding - Cream |
| 琴桥 | Music Man® double locking tremolo with fine tuners; lowers pitch only |
| 有效弦长 | 25-1/2" (64.8 cm) |
| 琴颈弧度 | 10" (25.4 cm) |
| 琴头尺寸 | Only 5-7/8" (14.9 cm) long |
| 品丝 | 22 - High profile, medium width stainless steel |
| 琴颈宽度 | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret |
| 琴颈木材 | White Birdseye Maple |
| 指板 | Figured Roasted Maple |
| 琴颈外观 | Gunstock oil and hand-rubbed special wax blend |
| 琴颈颜色 | Headstock Matches Body |
| 弦钮 | Schaller M6LA with pearl buttons |
| 琴颈调节杆 | Adjustable - no component or string removal |
| 琴颈连接补强板 | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| 电路屏蔽 | Graphite acrylic resin coated body cavity and aluminum lined control cover |
| 控制钮 | 500kohm volume pot |
| 拨档开关 | 3-way toggle pickup selector |
| 拾音器 | HH - 2 DiMarzio custom humbucking |
| 左手琴 | No |
| 琴弦 | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
id => 128
iid => 128
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2025-06-23 11:53:31
updated_at => 2025-06-23 11:53:31
| 配置 | Axis Premium One Piece Top | |
|---|---|---|
| Model | Axis Premium One Piece Top | |
| Order | 0 | |
| Size | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) | |
| Body Wood | Basswood with Premium One Piece Quilt Maple Top | |
| Body Finish | High gloss polyester | |
| Body Colors | ||
| Body Bindings | Binding - Cream | |
| Bridge | Music Man® double locking tremolo with fine tuners; lowers pitch only | |
| Pickguard | ||
| Scale Length | 25-1/2" (64.8 cm) | |
| Neck Radius | 10" (25.4 cm) | |
| Headstock Size | Only 5-7/8" (14.9 cm) long | |
| Frets | 22 - High profile, medium width stainless steel | |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret | |
| Neck Wood | White Birdseye Maple | |
| Fingerboard | Figured Roasted Maple | |
| Fret Markers | ||
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | Headstock Matches Body | |
| Neck Binding | ||
| Tuning Machines | Schaller M6LA with pearl buttons | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets | |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined control cover | |
| Controls | 500kohm volume pot | |
| Switching | 3-way toggle pickup selector | |
| Pickups | HH - 2 DiMarzio custom humbucking | |
| Left Handed | No | |
| Strings | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
