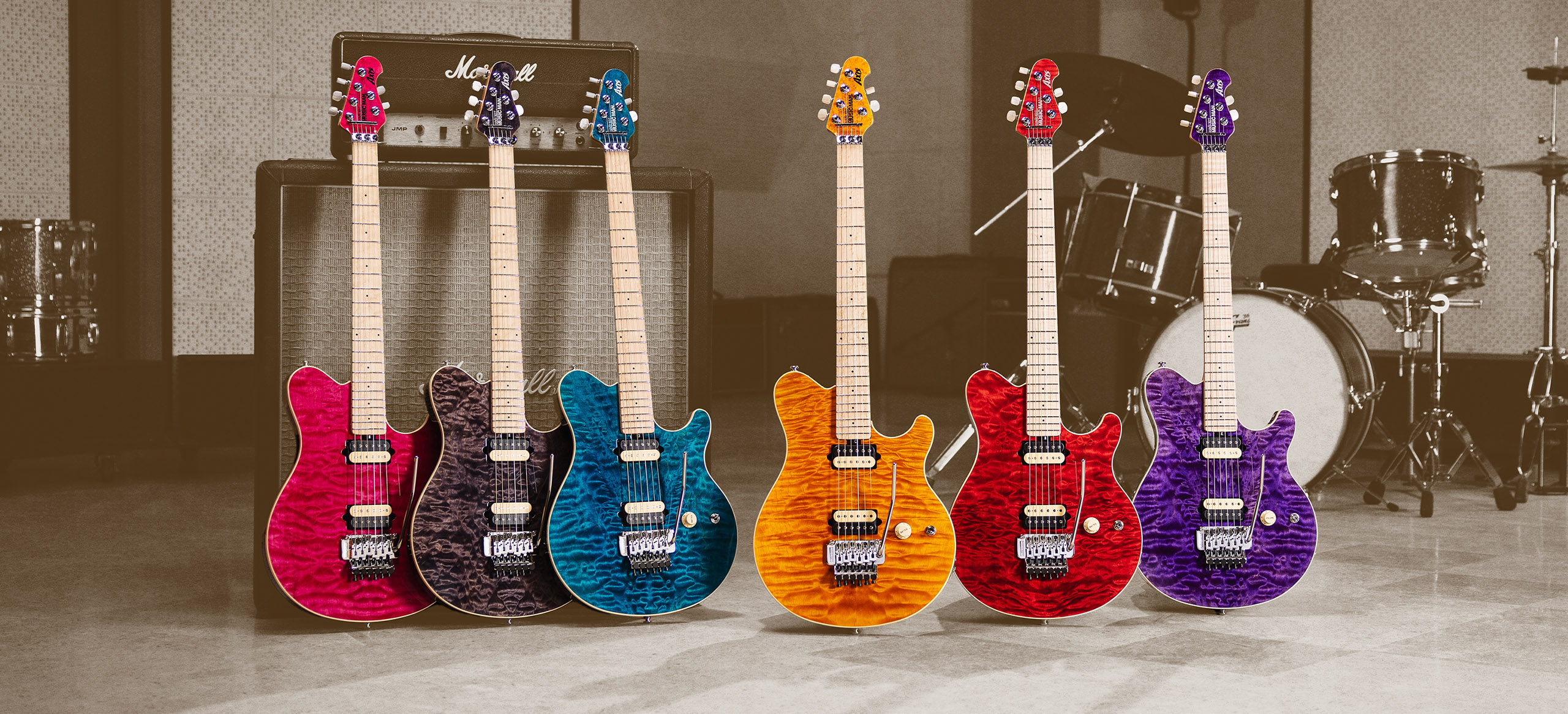

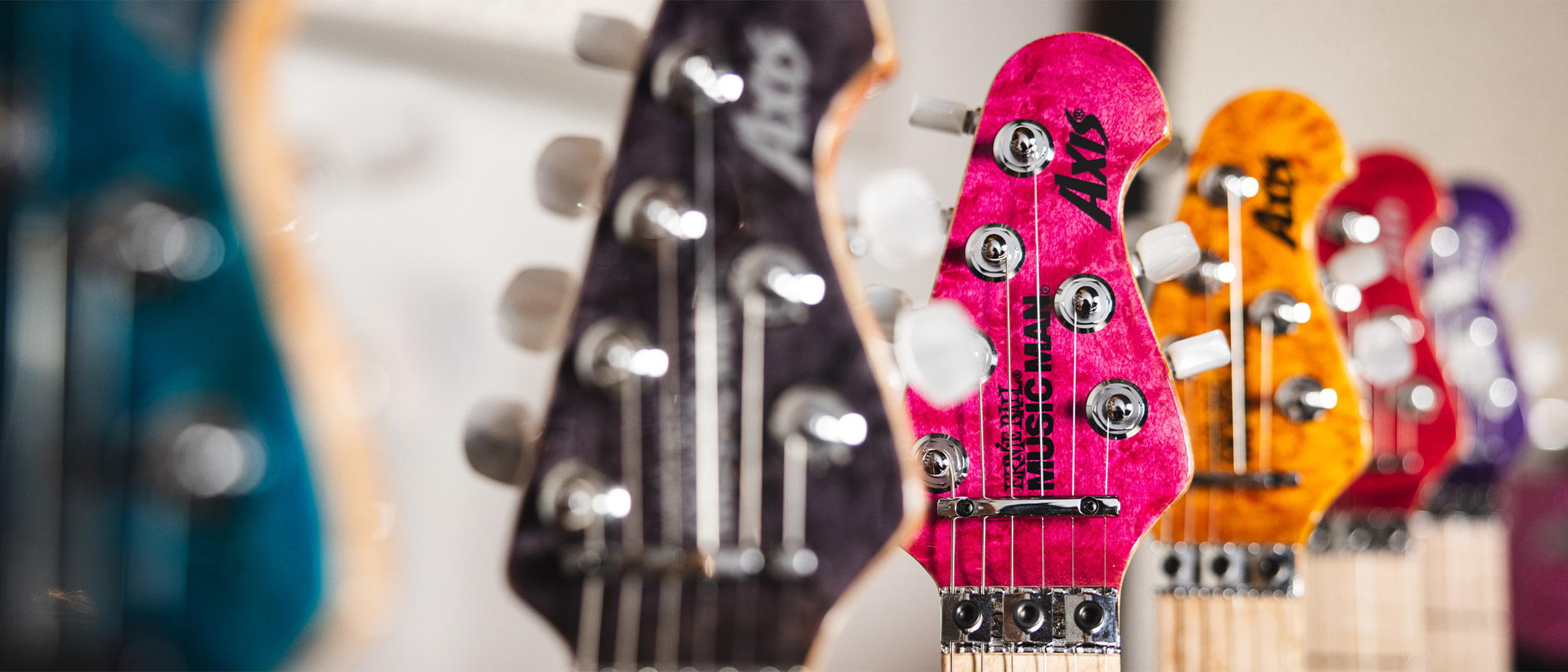

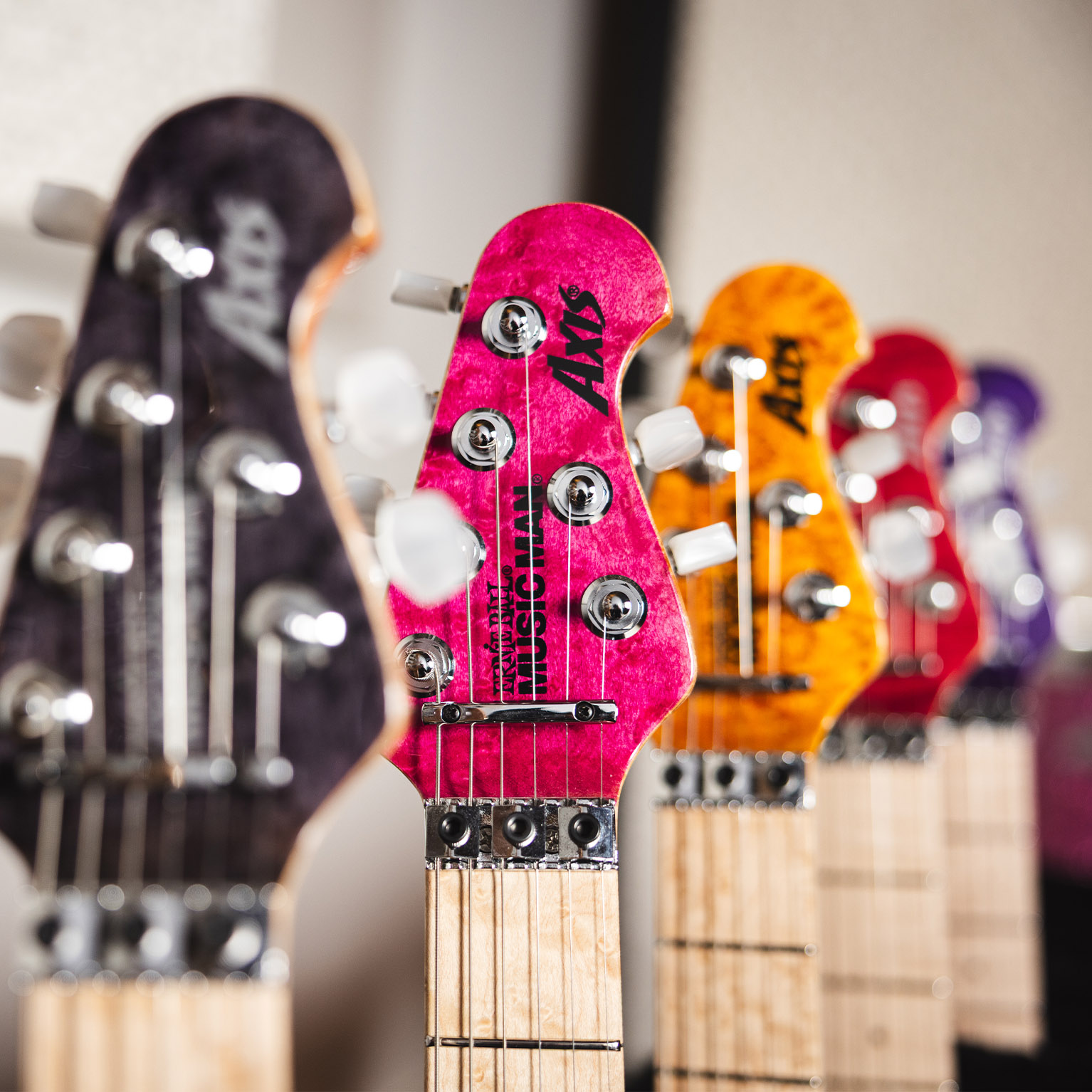

Celebrating 30 years of the Axis, this limited edition collection revisits the iconic translucent finishes of its 1996 debut. Each hand stained quilt maple top, available in Gold, Black, Pink, Red, Blue, and Purple, is paired with a black, lightly sparkled back that subtly echoes the top’s hue. Built to the original specs, these guitars feature the classic asymmetrical neck carve, 22 stainless steel frets, and glow in the dark side dots on a figured maple neck. Equipped with the legendary custom wound DiMarzio® pickups and finished with a color matched headstock and a commemorative 30th Anniversary logo, each instrument includes a certificate of authenticity and a deluxe hardshell case.

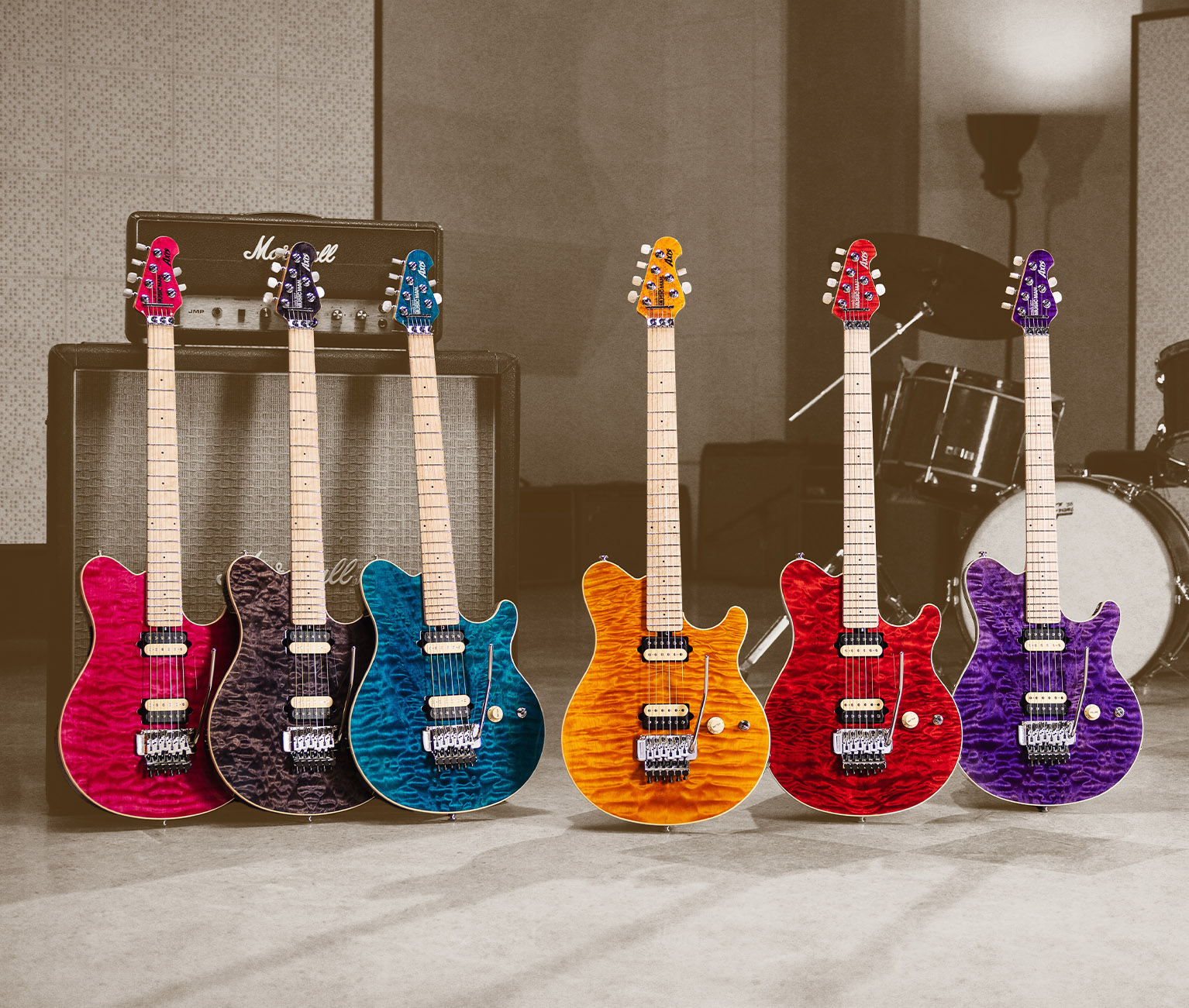

Translucent Gold
Translucent Black
Translucent Blue
Translucent Pink
Translucent Purple
Translucent Red

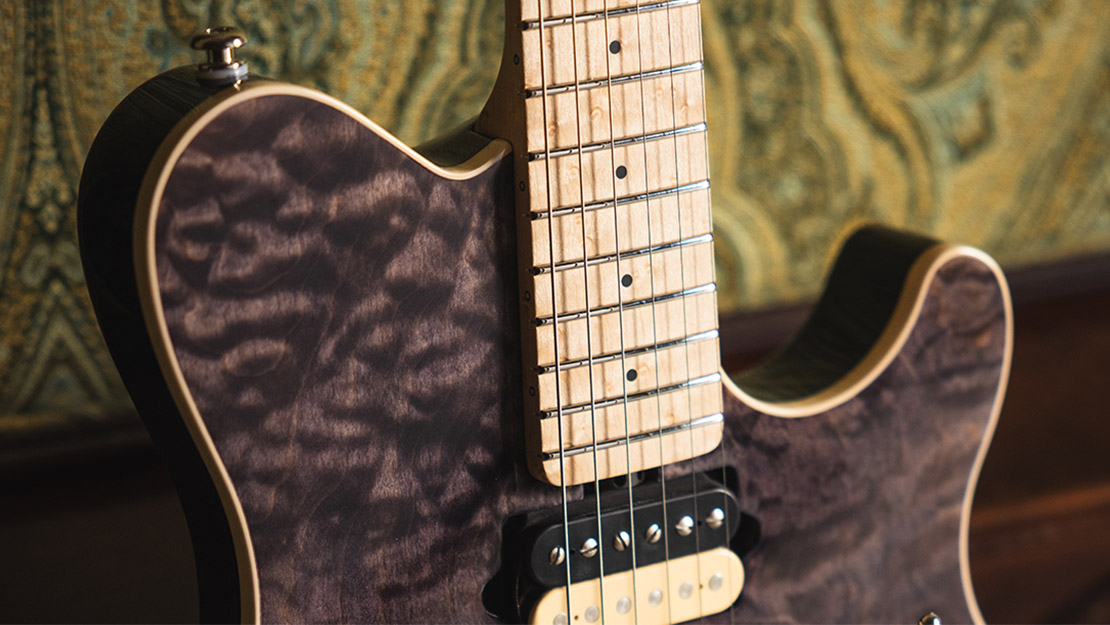

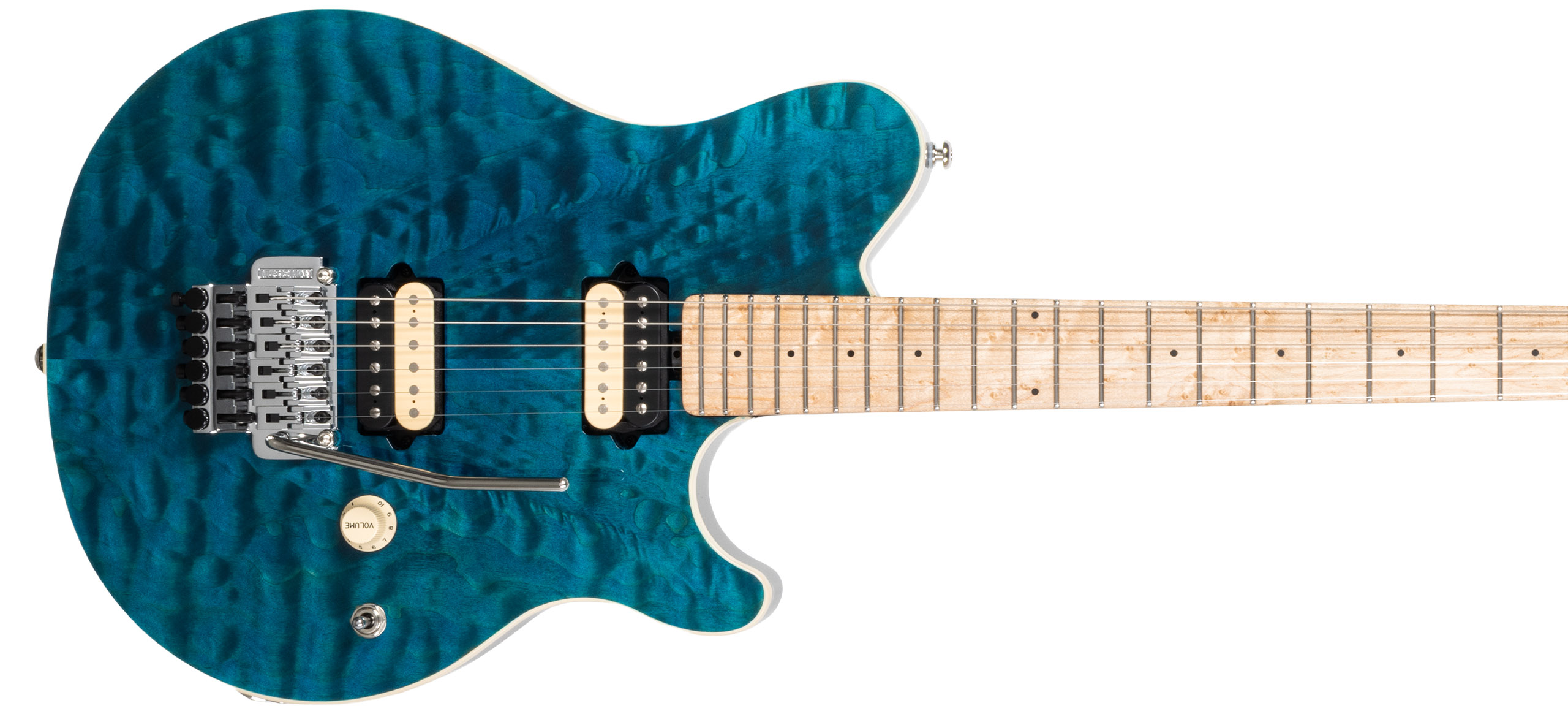

The Axis 30th Anniversary guitar features a perfectly balanced, single cutaway body design that allows unparalleled access to all 22 stainless steel frets. The figured maple neck with an asymmetric custom neck carve provides an ultra comfortable playing experience.
The back profile thickness is off center toward the bass side of the neck and thins out toward the treble side, allowing for a more comfortable playing experience under the fingertips.

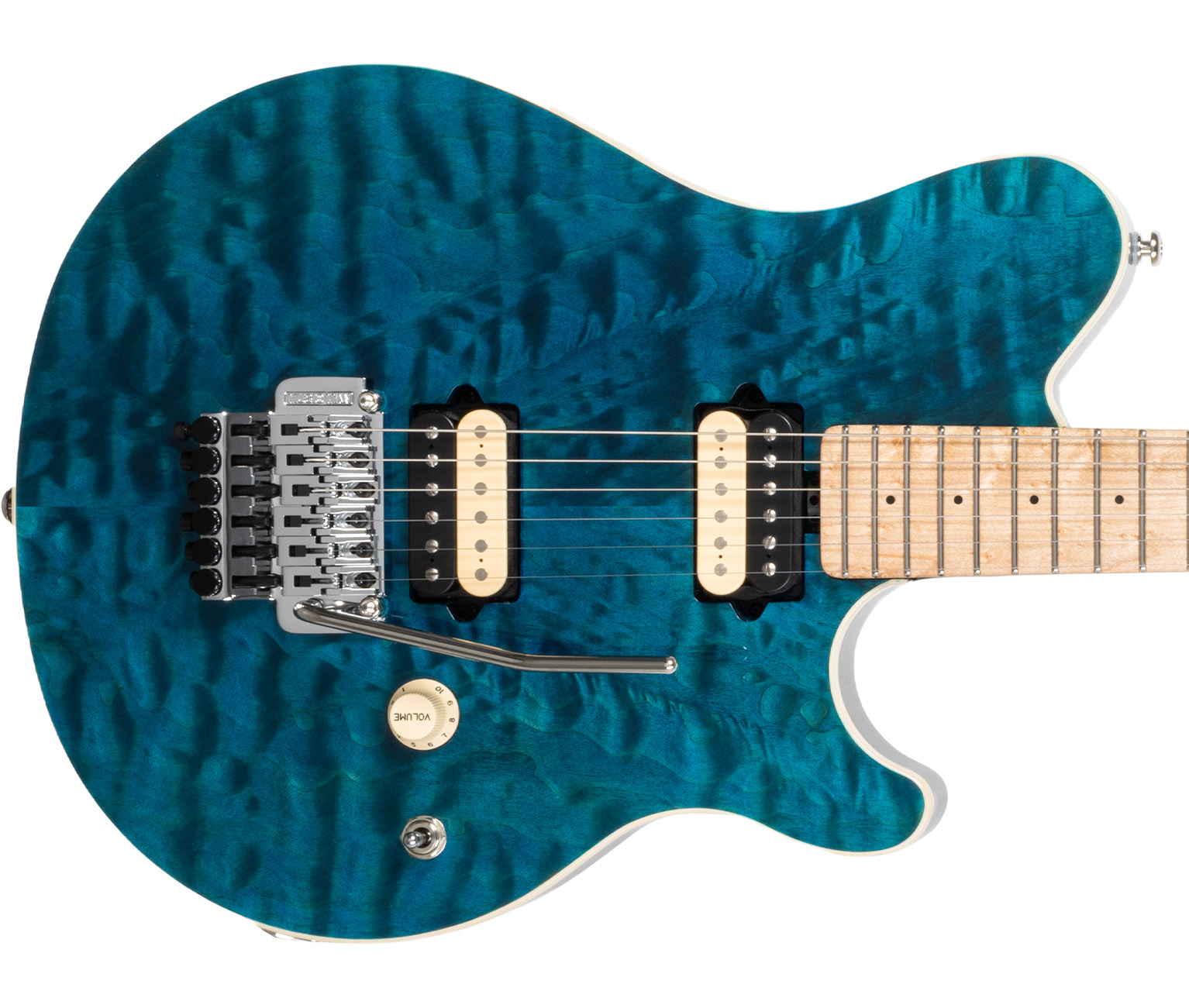

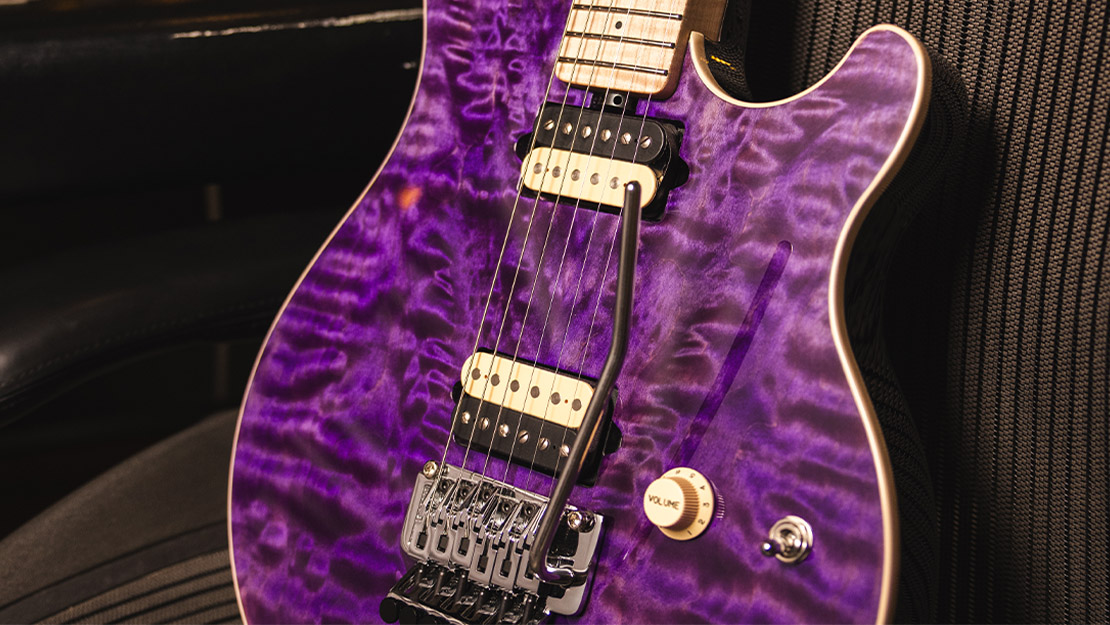

Proprietary humbucking pickups are custom designed for the Axis guitar.

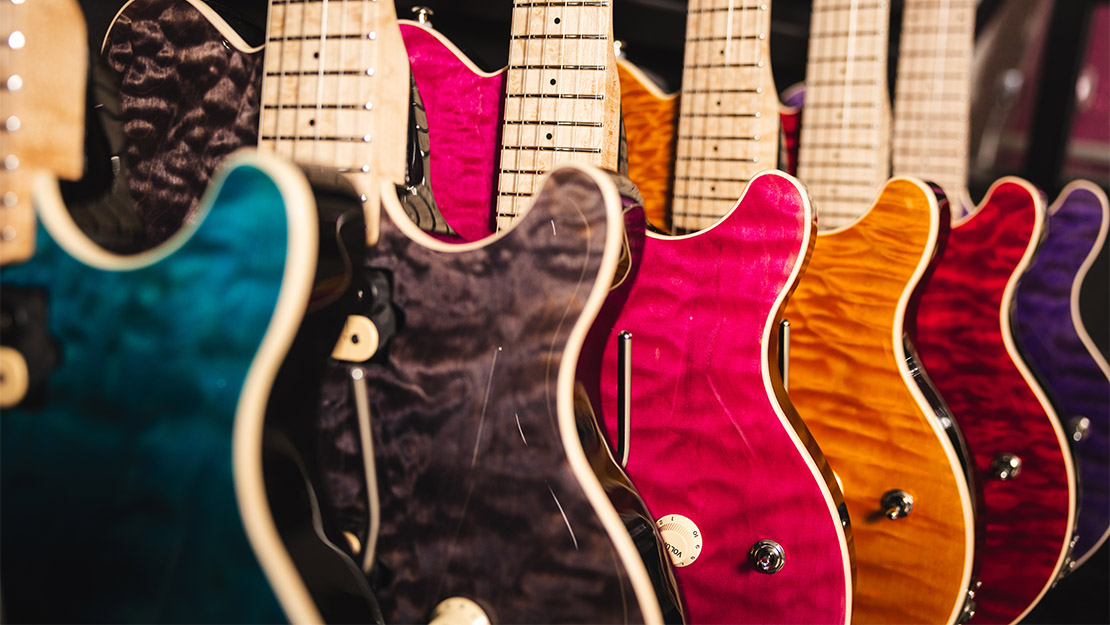

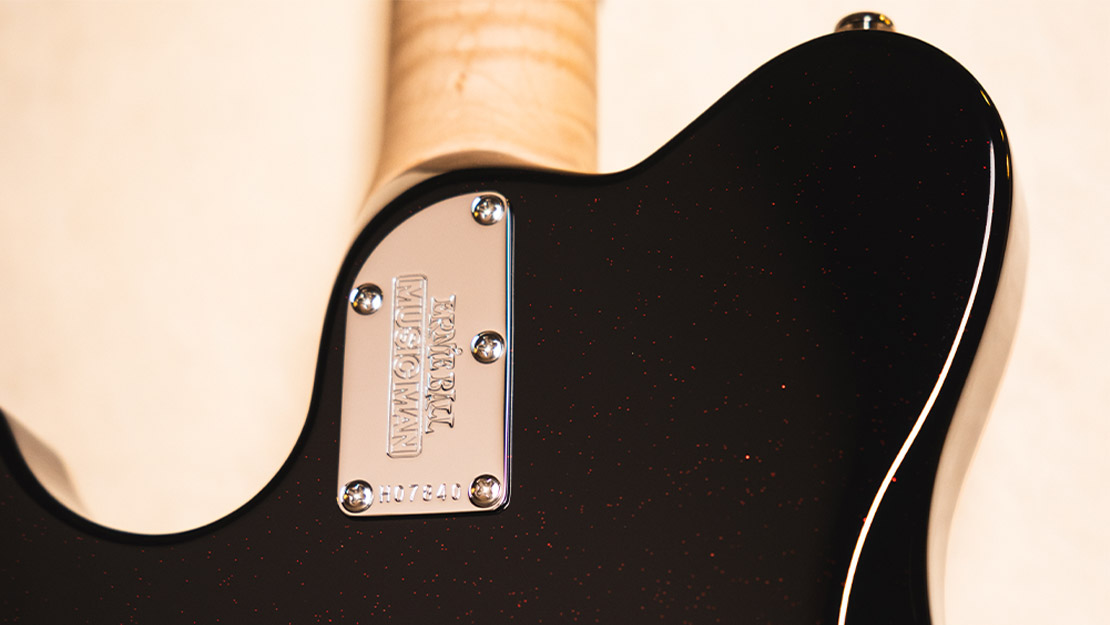

Each hand stained quilt maple top is paired with a black, lightly sparkled back that subtly echoes the top’s hue.
Limited worldwide production: 120 Gold; 100 each Black, Pink, Purple, Blue and Red.
Hand selected body and neck woods are sustainably sourced from our network of hardwood suppliers worldwide. Basswood and maple tonewoods are individually chosen and matched for their beautiful appearance and rich tonal qualities.
| 配置 | 30th Anniversary Axis |
|---|---|
| 款式 | 30th Anniversary Axis |
| 尺寸 | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) |
| 琴身木材 | Basswood with Quilt Maple Top |
| 琴身外观 | High Gloss Polyester |
| 琴身颜色 | Translucent: Black, Blue, Gold, Pink, Purple, Red |
| 琴身包边 | Cream |
| 琴桥 | Music Man® double locking tremolo with fine tuners; lowers pitch only |
| 护板 | None |
| 有效弦长 | 25-1/2" (64.8 cm) |
| 琴颈弧度 | 10" |
| 琴头尺寸 | Only 5-7/8" (14.9 cm) long |
| 品丝 | 22 - High profile, medium width stainless steel |
| 琴颈宽度 | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret |
| 琴颈木材 | White Figured Maple |
| 指板 | Figured Maple |
| 品位标记 | Dot |
| 琴颈外观 | Gunstock oil and hand-rubbed special wax blend |
| 琴颈颜色 | Natural; Headstock Matches Body |
| 琴颈包边 | Cream |
| 弦钮 | Schaller M6LA with pearl buttons |
| 琴颈调节杆 | Adjustable - no component or string removal |
| 琴颈连接补强板 | 5 bolts - Sculpted neck joint allows smooth access to higher frets |
| 电路屏蔽 | Graphite acrylic resin coated body cavity and aluminum lined control cover |
| 控制钮 | 500kohm volume pot, 3-way toggle pickup selector |
| 拨档开关 | 3-way toggle pickup selector |
| 拾音器 | HH - 2 DiMarzio custom humbucking |
| 左手琴 | No |
| 琴弦 | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
id => 133
iid => 133
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2026-04-06 08:10:21
updated_at => 2026-04-06 08:10:21
| 配置 | 30th Anniversary Axis | |
|---|---|---|
| Model | 30th Anniversary Axis | |
| Order | 0 | |
| Size | 12-5/8" wide, 1-3/4" thick, 36-1/4" long (32.1 cm wide, 4.5 cm thick, 92.0 cm long) | |
| Body Wood | Basswood with Quilt Maple Top | |
| Body Finish | High Gloss Polyester | |
| Body Colors | Translucent: Black, Blue, Gold, Pink, Purple, Red | |
| Body Bindings | Cream | |
| Bridge | Music Man® double locking tremolo with fine tuners; lowers pitch only | |
| Pickguard | None | |
| Scale Length | 25-1/2" (64.8 cm) | |
| Neck Radius | 10" | |
| Headstock Size | Only 5-7/8" (14.9 cm) long | |
| Frets | 22 - High profile, medium width stainless steel | |
| Neck Width | 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret | |
| Neck Wood | White Figured Maple | |
| Fingerboard | Figured Maple | |
| Fret Markers | Dot | |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | Natural; Headstock Matches Body | |
| Neck Binding | Cream | |
| Tuning Machines | Schaller M6LA with pearl buttons | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5 bolts - Sculpted neck joint allows smooth access to higher frets | |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined control cover | |
| Controls | 500kohm volume pot, 3-way toggle pickup selector | |
| Switching | 3-way toggle pickup selector | |
| Pickups | HH - 2 DiMarzio custom humbucking | |
| Left Handed | No | |
| Strings | 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239) |
