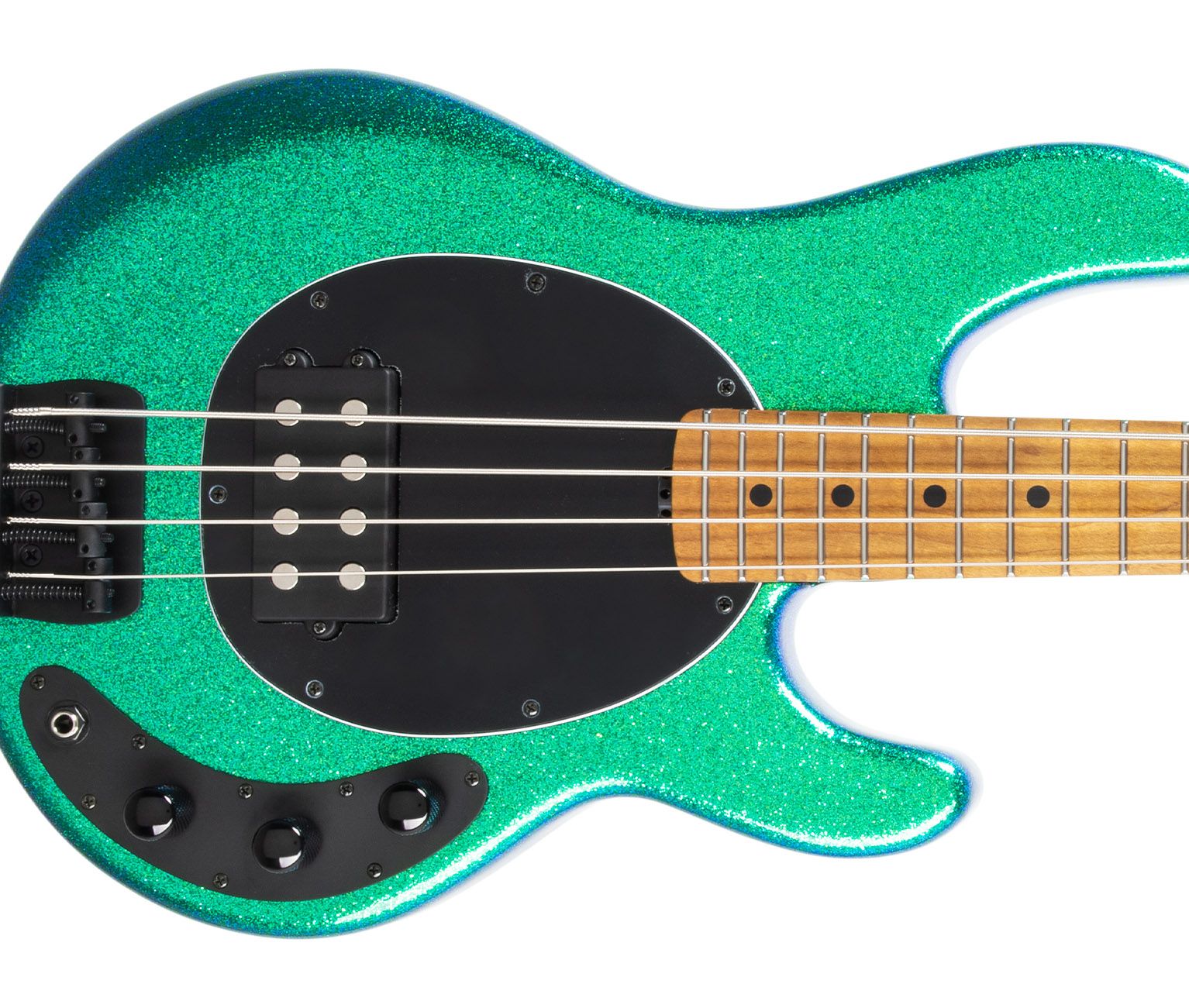

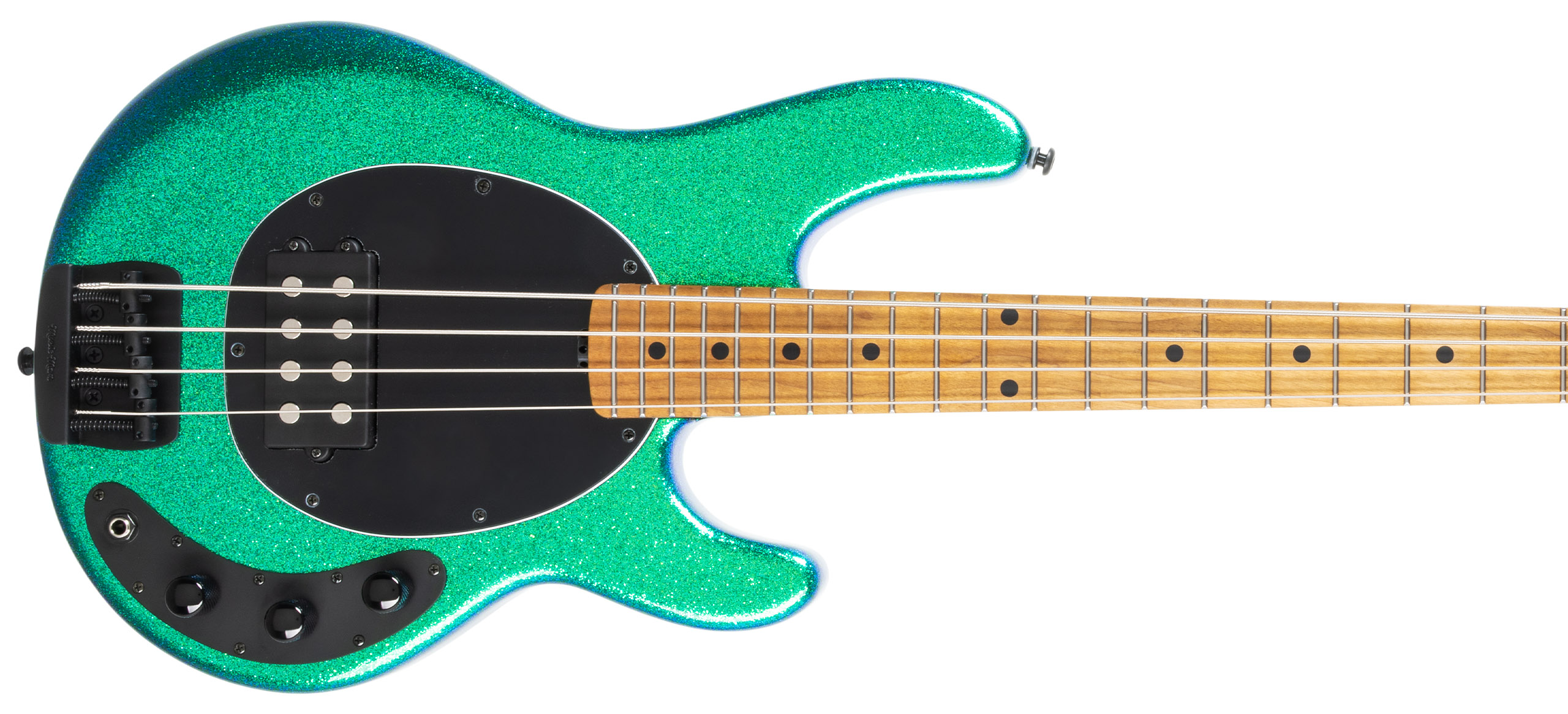

The Ernie Ball Music Man Short Scale StingRay bass offers a big thumpy round sound in a convenient smaller package. A 30” scale allows for easier playability due to the shorter spacing between the frets. The Ernie Ball Music Man passive humbucking pickup, equipped with higher output neodymium magnets, has been specially designed for the short scale bass, providing its signature warm tone. The electronics package includes a 3-way rotary switch featuring parallel, true single-coil, and series modes. Like its big brother, the Stingray Special, the short scale bass comes standard with a modern classic bridge, 22 stainless steel frets, and new lightweight Music Man tuning machines with a finer gear ratio.
Goldbar
Black Sparkle
Black Cherry Burst
Kiwi Green
Blood Orange
Vintage Blue Pearl

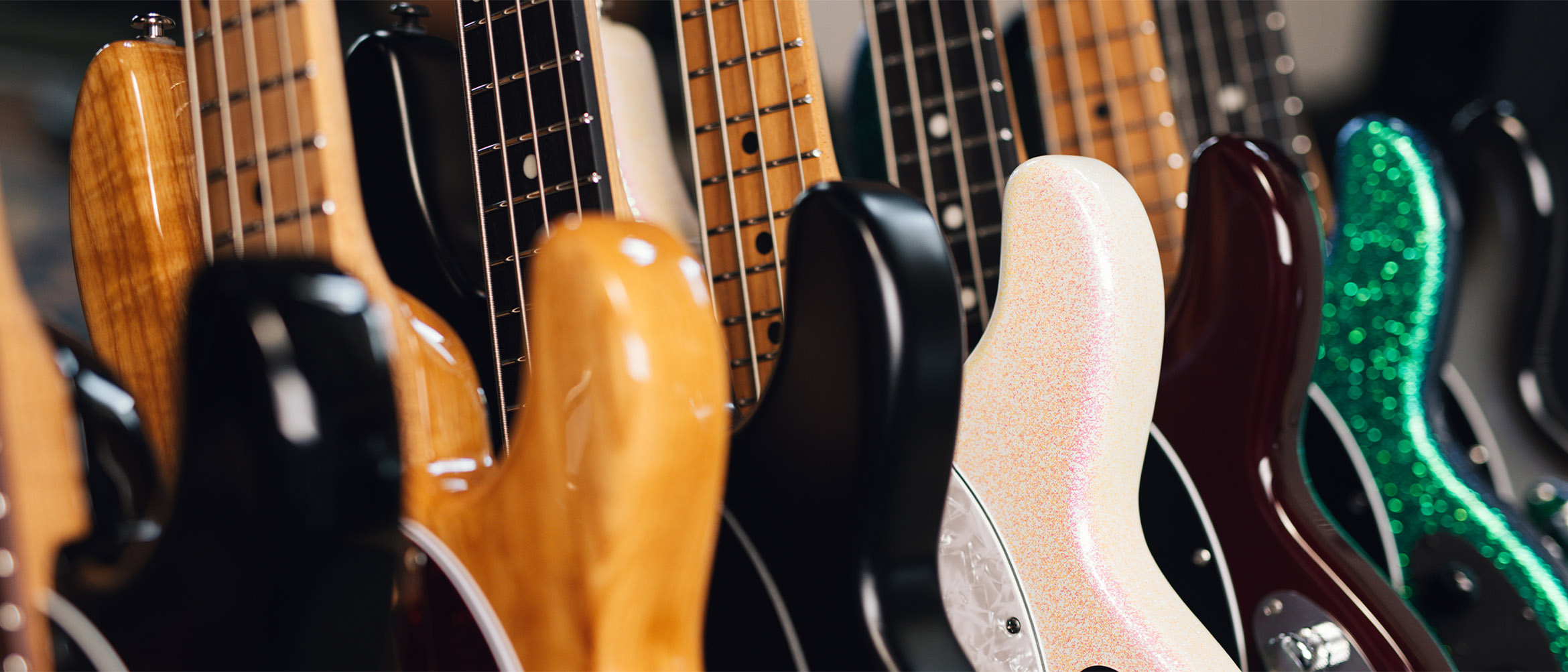

Optimized, modernized, yet so familiar, the new Short Scale StingRay bass is tailor-made for today's most discerning players

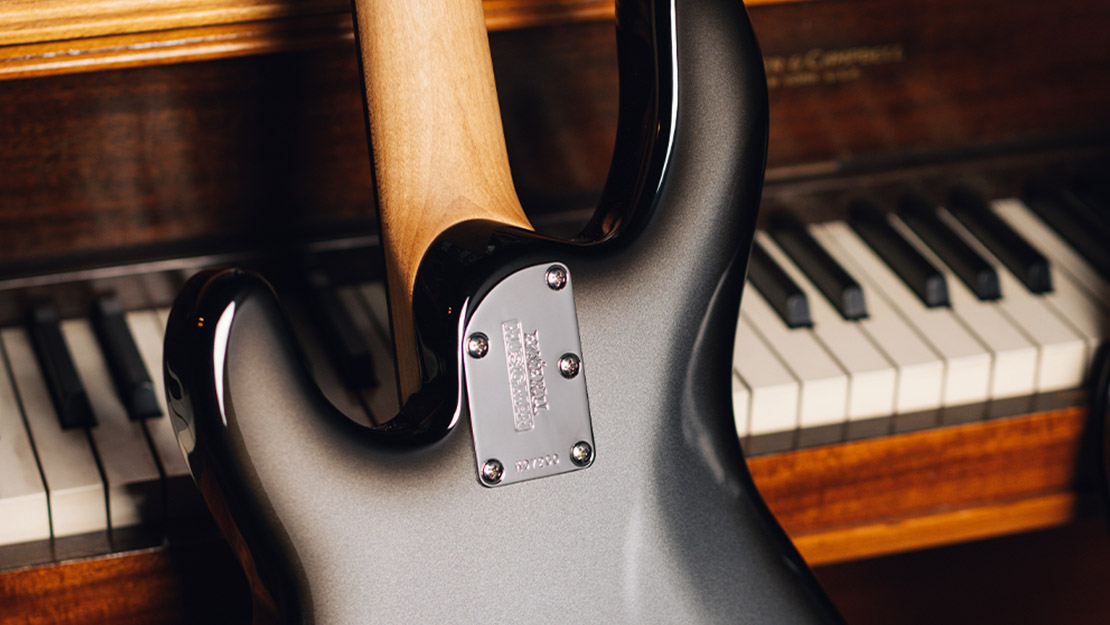

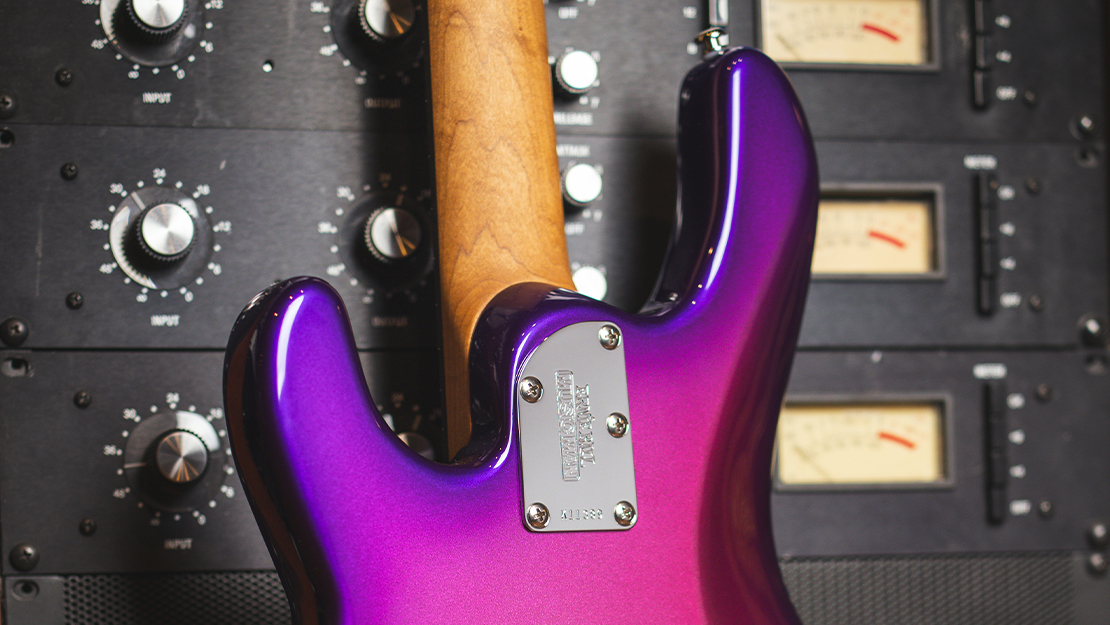

The sculpted neck joint provides uninhibited access to all 22 stainless steel frets atop roasted maple necks.

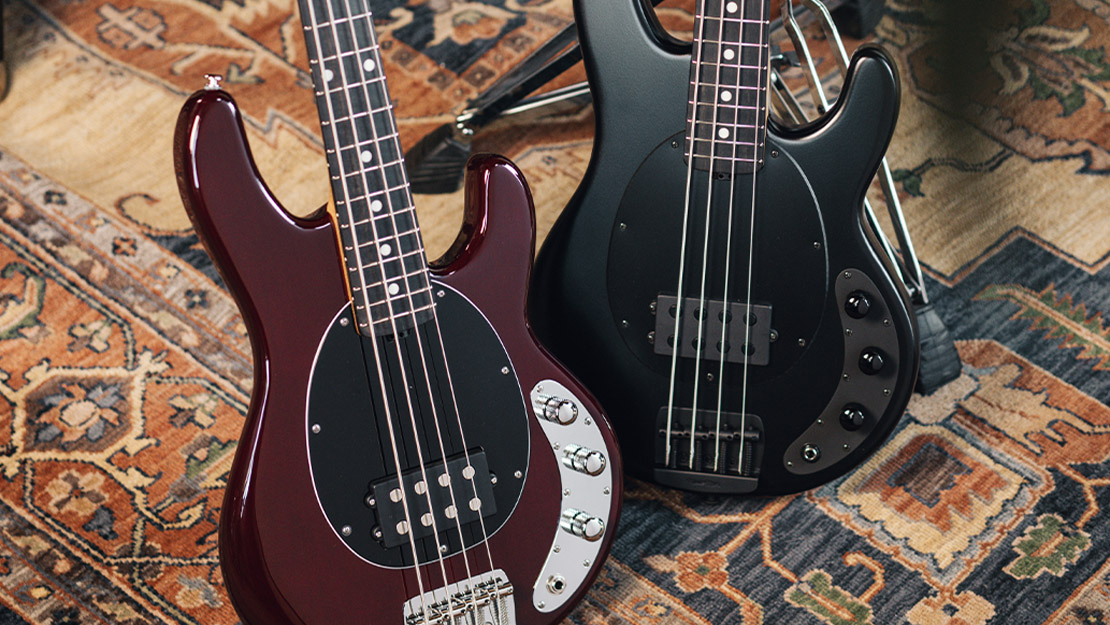

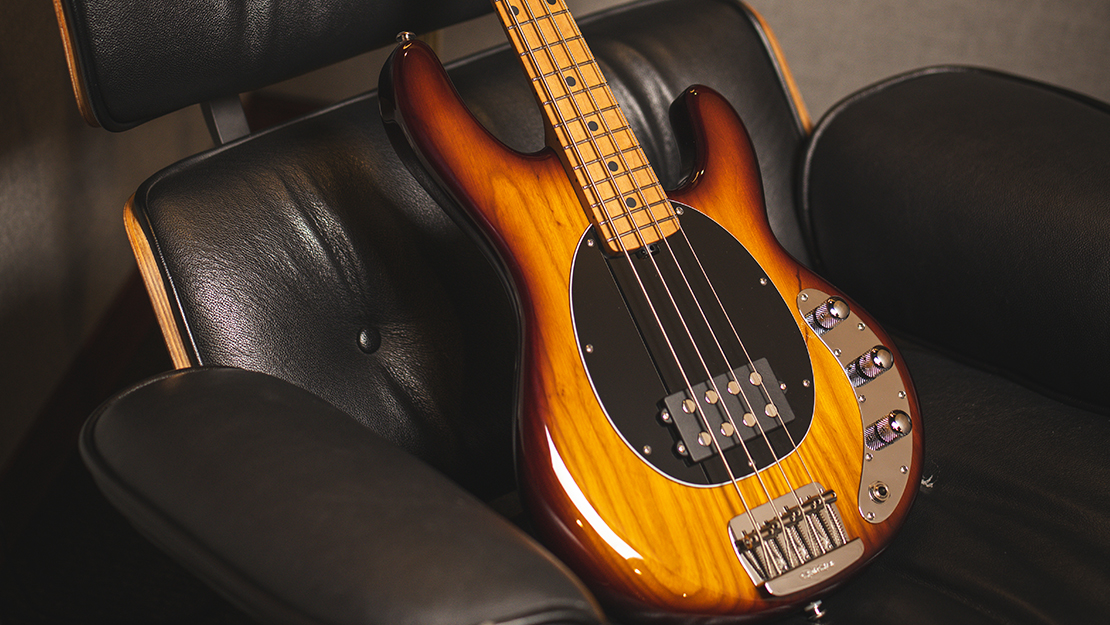

Enhanced body contours are rounded for more comfort in any playing position while retaining that revered, iconic StingRay sound.

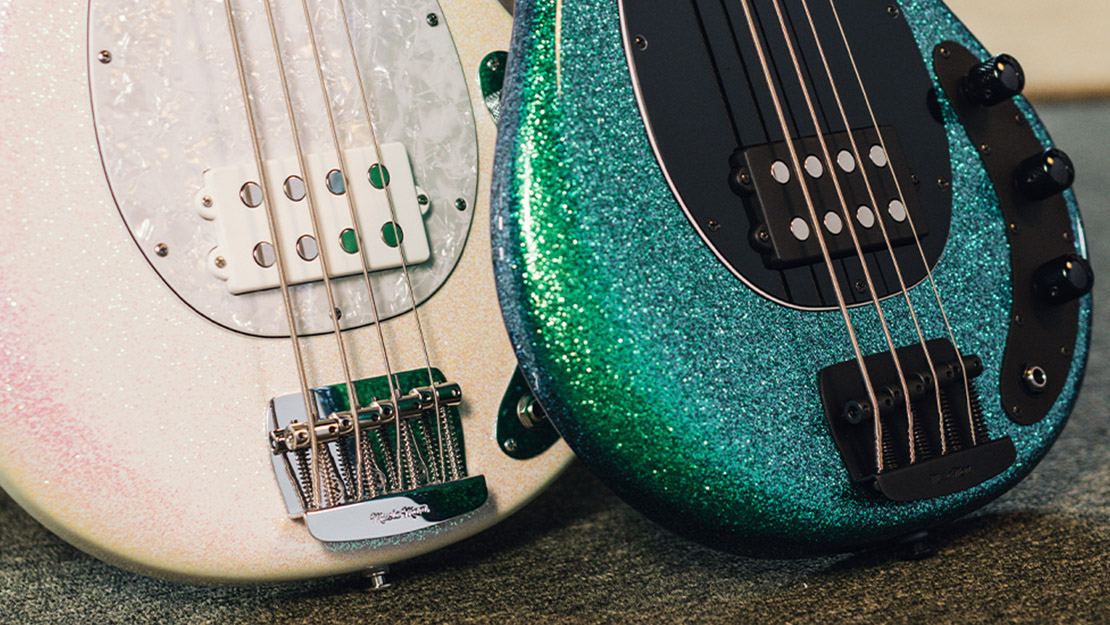

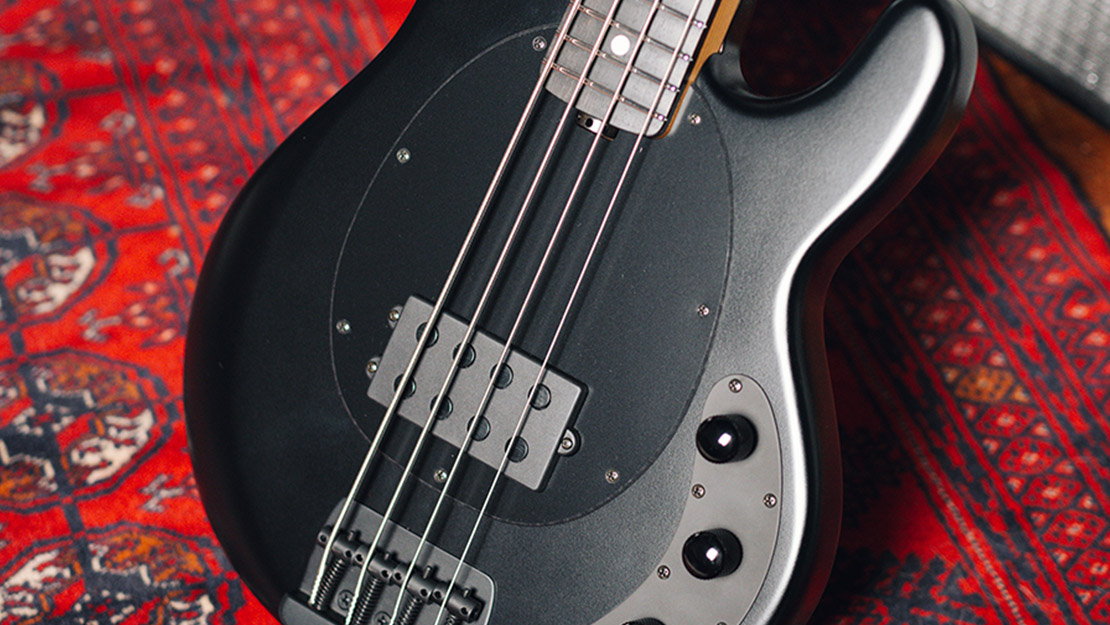

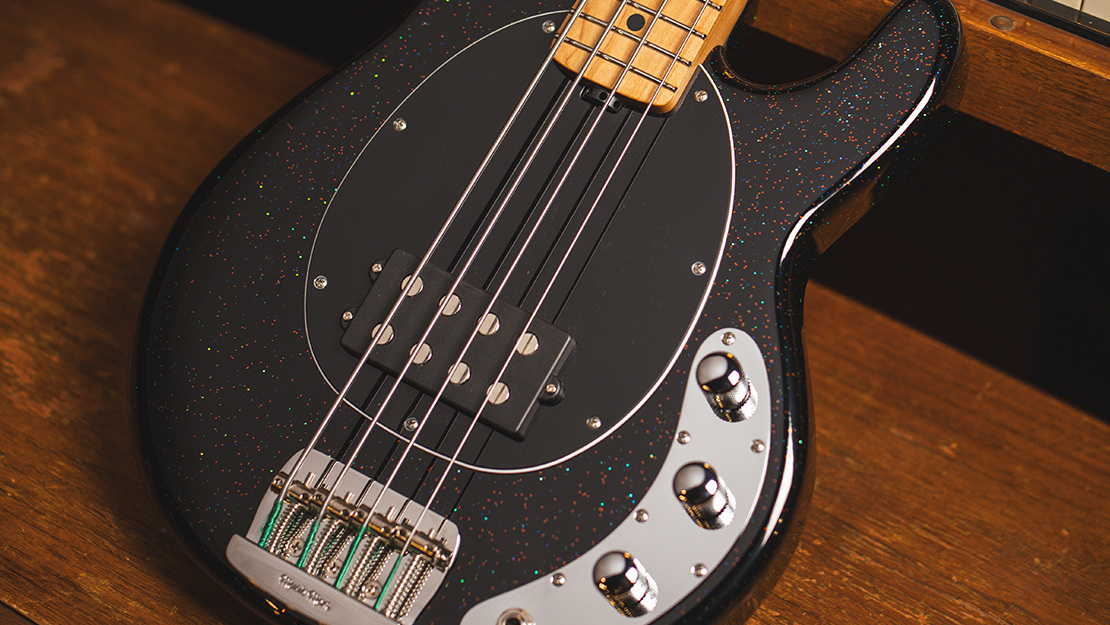

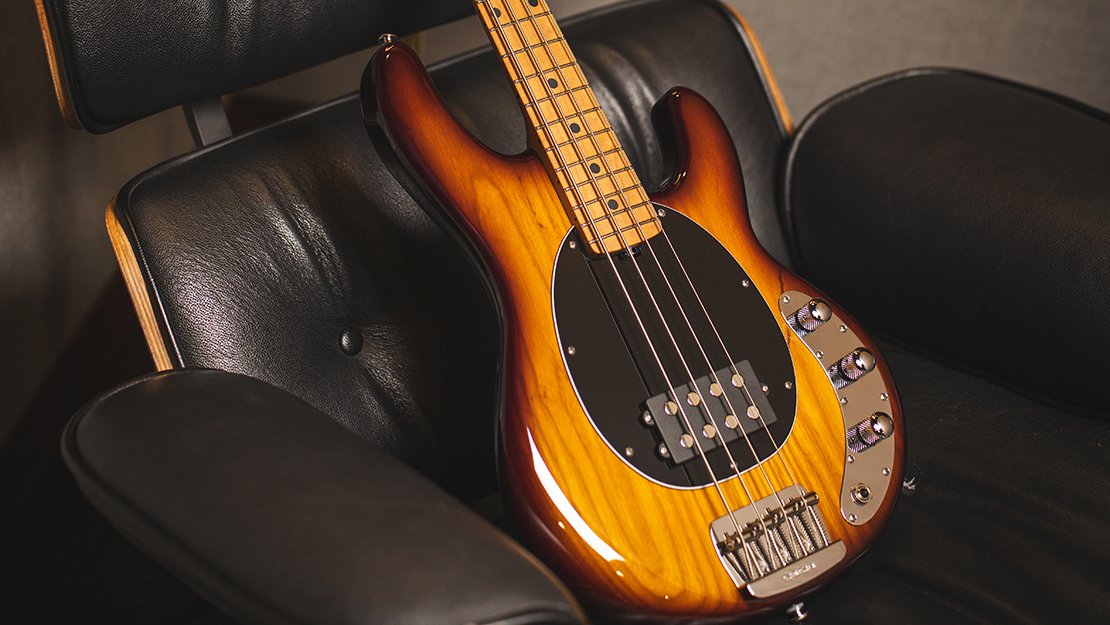

The new and improved Short Scale StingRay electronics feature powerful neodymium magnets, bringing you more output and a wider range of sounds
The electronics package includes a 3-way rotary switch featuring parallel, true single-coil, and series modes. All three pickup selections’ audio signals can be augmented by a boost when engaging the push volume pot.
| 配置 | Short Scale StingRay Bass |
|---|---|
| 款式 | Short Scale StingRay Bass |
| 尺寸 | 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long) |
| 琴身木材 | Ash |
| 琴身外观 | High gloss polyester |
| 琴桥 | Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles |
| 有效弦长 | 30" (76.2 cm) |
| 品丝 | 22 - High profile, wide stainless steel |
| 琴颈宽度 | 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret |
| 琴颈木材 | Select Maple |
| 品位标记 | 5/16" Dot Inlay |
| 琴颈外观 | Gunstock oil and hand-rubbed special wax blend |
| 弦钮 | Custom Music Man, lightweight with tapered string posts and ergonomic clover design |
| 琴颈调节杆 | Adjustable - no component or string removal |
| 琴颈连接补强板 | 5 bolt, sculpted neck joint |
| 电路屏蔽 | Chrome plated aluminum control cover |
| 控制钮 | Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap |
| 拨档开关 | 3-way rotary pickup selector |
| 拾音器 | Single Music Man humbucking pickup- neodymium magnets |
| 左手琴 | No |
| 琴弦 | 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852) |
id => 82
iid => 82
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2019-08-14 08:32:49
updated_at => 2019-08-14 08:32:49
| 配置 | Short Scale StingRay Bass | |
|---|---|---|
| Model | Short Scale StingRay Bass | |
| Order | 0 | |
| Size | 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long) | |
| Body Wood | Ash | |
| Body Finish | High gloss polyester | |
| Body Colors | ||
| Body Bindings | ||
| Bridge | Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles | |
| Pickguard | ||
| Scale Length | 30" (76.2 cm) | |
| Neck Radius | ||
| Headstock Size | ||
| Frets | 22 - High profile, wide stainless steel | |
| Neck Width | 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret | |
| Neck Wood | Select Maple | |
| Fingerboard | ||
| Fret Markers | 5/16" Dot Inlay | |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | ||
| Neck Binding | ||
| Tuning Machines | Custom Music Man, lightweight with tapered string posts and ergonomic clover design | |
| Truss Rod | Adjustable - no component or string removal | |
| Neck Attachment | 5 bolt, sculpted neck joint | |
| Electronic Shielding | Chrome plated aluminum control cover | |
| Controls | Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap | |
| Switching | 3-way rotary pickup selector | |
| Pickups | Single Music Man humbucking pickup- neodymium magnets | |
| Left Handed | No | |
| Strings | 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852) |
