Crafted in partnership with Darkglass Electronics, renowned for their expertise in bass accessories, the DarkRay unleashes a universe of sonic innovation.
At its core lies a cutting-edge 2 Band EQ preamp, custom-crafted by Darkglass, offering three distinct modes: Clean, Alpha (distortion), and Omega (fuzz). Dial in your perfect tone with the onboard gain knob and blend control, seamlessly mixing pristine cleans with aggressive fuzz, all while keeping that low-end power intact. An intuitive LED ring and 3-way lever switch make mode selection a breeze.
The DarkRay is every bit a Stingray Special and boasts a neodymium humbucking pickup, roasted maple neck, sleek contoured body, 22 stainless steel frets, and that iconic 3+1 headstock configuration.
Dark Rainbow
Gold Bar
Starry Night
The DarkRay is equipped with a new modern 2 Band preamp that Darkglass specifically designed. The preamp is extremely clean and quiet with adjustable volume, gain, bass, treble, and blend controls to achieve the desired tone.

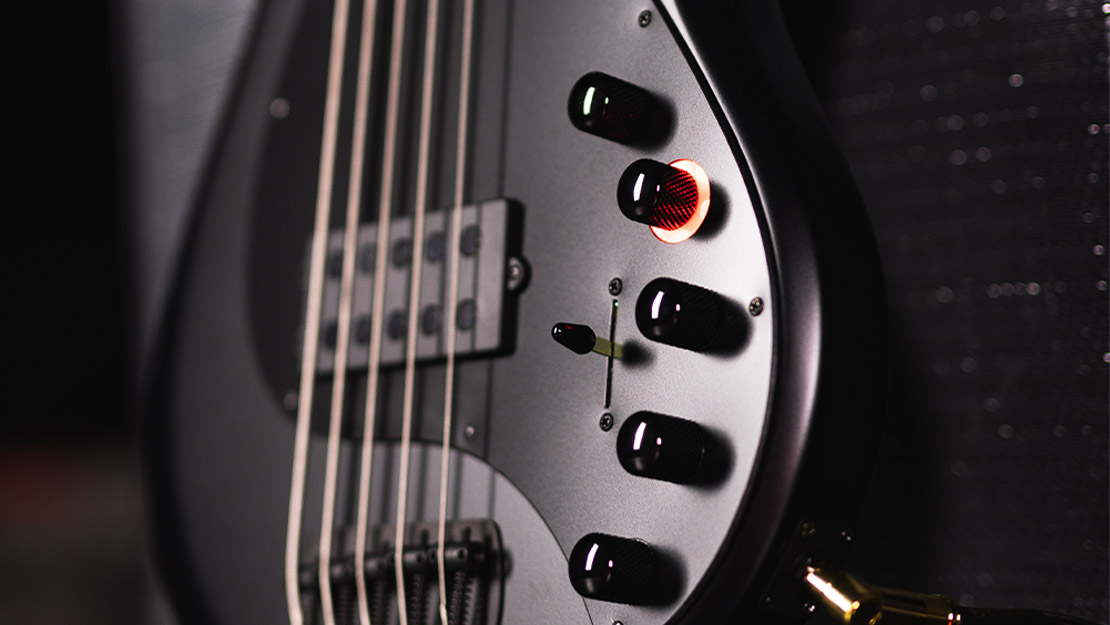

The Darkglass preamp offers two highly regarded drive circuits, Alpha(tight distortion) and Omega(fuzz). Both distortion circuits are fully mixable via an onboard gain knob and blend control manipulated to the user’s preference with no low-end loss. Via the 3-way lever switch, a bright color-coded LED ring is illuminated, signifying which mode the bass is in.

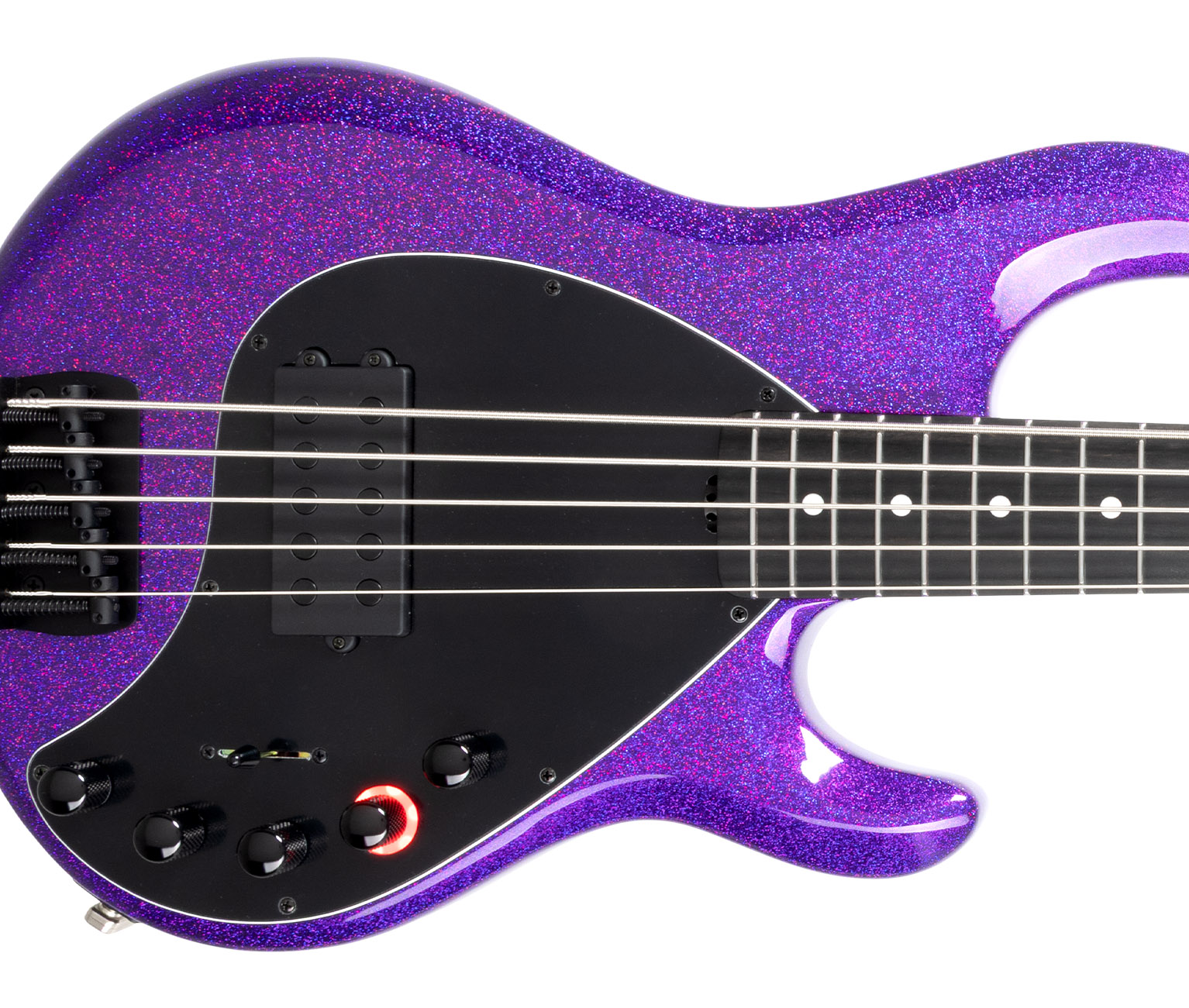

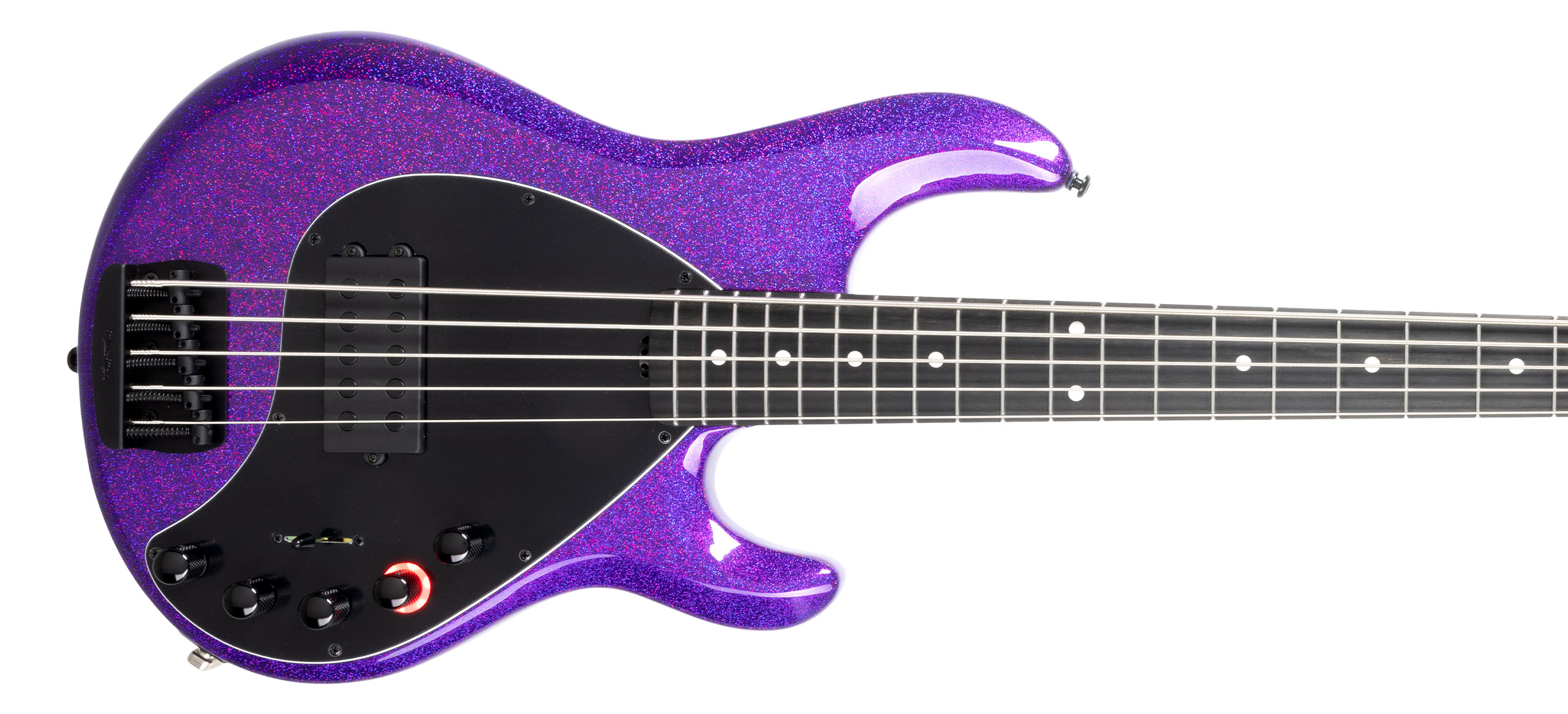

The DarkRay bass is every bit a Stingray Special with neodymium humbucking pickup, roasted maple neck, comfort contoured body, 22 stainless steel frets, all black hardware, and the familiar 3+1 headstock configuration.
| 配置 | DarkRay 5 |
|---|---|
| 款式 | DarkRay 5 |
| 尺寸 | 13-3/8" wide, 1-5/8" thick, 45-3/4" long (34.0 cm wide, 4.1 cm thick, 116.2 cm long) |
| 琴身木材 | Select Hardwood |
| 琴身外观 | High Gloss Polyester |
| 琴桥 | Vintage Music Man® top loaded Black plated, steel bridge plate with vintage Black plated steel saddles |
| 护板 | Black |
| 有效弦长 | 34" |
| 琴颈弧度 | 11" (27.9 cm) |
| 琴头尺寸 | Only 8-3/4" (22.2 cm) long |
| 品丝 | 22 - High profile, wide, stainless steel |
| 琴颈宽度 | 1-3/4" (44.5 mm) at the nut; 2-3/4" (69.9 mm) at the last fret |
| 琴颈木材 | Roasted Maple |
| 指板 | Ebony (Roasted Maple on Gold Bar) |
| 品位标记 | Dot |
| 琴颈外观 | Gunstock oil and hand-rubbed special wax blend |
| 琴颈颜色 | Natural |
| 弦钮 | Custom Music Man, lightweight with tapered string posts and ergonomic clover design |
| 琴颈连接补强板 | 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets |
| 电路屏蔽 | Graphite acrylic resin coated body cavity and aluminum lined pickguard |
| 控制钮 | vol, gain, blend, treble, bass |
| 拨档开关 | 3-way lever distortion selector; Preamp Only, Preamp+Alpha Distortion, Preamp+Omega Distortion |
| 拾音器 | Single Humbucking with Neodymium magnets |
| 琴弦 | 45w-65w-80w-100w-130w (Regular Slinky Bass #2836) |
id => 103
iid => 103
enabled => 1
header_1 =>
header_2 =>
wiring_image => 0
created_at => 2022-05-16 11:05:16
updated_at => 2022-05-16 11:05:16
| 配置 | DarkRay 5 | |
|---|---|---|
| Model | DarkRay 5 | |
| Order | 0 | |
| Size | 13-3/8" wide, 1-5/8" thick, 45-3/4" long (34.0 cm wide, 4.1 cm thick, 116.2 cm long) | |
| Body Wood | Select Hardwood | |
| Body Finish | High Gloss Polyester | |
| Body Colors | ||
| Body Bindings | ||
| Bridge | Vintage Music Man® top loaded Black plated, steel bridge plate with vintage Black plated steel saddles | |
| Pickguard | Black | |
| Scale Length | 34" | |
| Neck Radius | 11" (27.9 cm) | |
| Headstock Size | Only 8-3/4" (22.2 cm) long | |
| Frets | 22 - High profile, wide, stainless steel | |
| Neck Width | 1-3/4" (44.5 mm) at the nut; 2-3/4" (69.9 mm) at the last fret | |
| Neck Wood | Roasted Maple | |
| Fingerboard | Ebony (Roasted Maple on Gold Bar) | |
| Fret Markers | Dot | |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend | |
| Neck Colors | Natural | |
| Neck Binding | ||
| Tuning Machines | Custom Music Man, lightweight with tapered string posts and ergonomic clover design | |
| Truss Rod | ||
| Neck Attachment | 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets | |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum lined pickguard | |
| Controls | vol, gain, blend, treble, bass | |
| Switching | 3-way lever distortion selector; Preamp Only, Preamp+Alpha Distortion, Preamp+Omega Distortion | |
| Pickups | Single Humbucking with Neodymium magnets | |
| Left Handed | ||
| Strings | 45w-65w-80w-100w-130w (Regular Slinky Bass #2836) |
